| Manufacturer Part Number: | 46556-3145 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9310 Pieces |
| Unit Price: | Quote by Email |

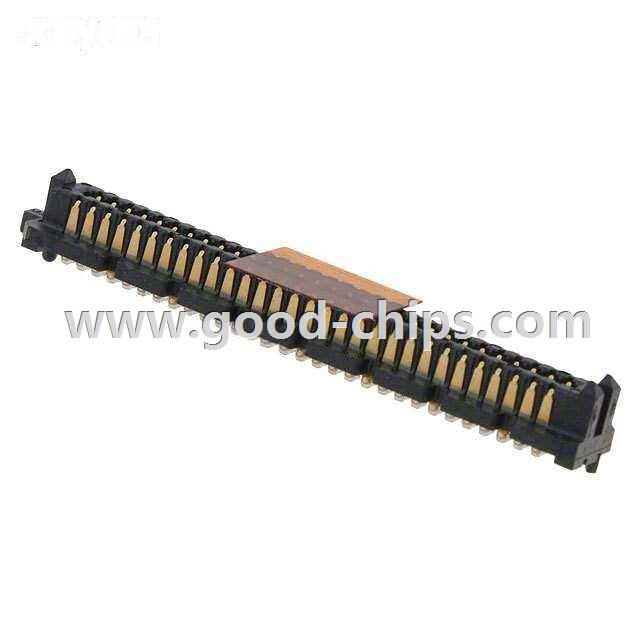

| Description: | 120 Position Connector High Density Array, Male Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 46556-3145 Datasheet |
| Internal Part Number | 898-46556-3145 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 46556-3145 Cert of Compliance | |
| 3D Model | 46556-3145.stp 46556-3145.igs 46556-3145.prt | |
| Online Catalog | SEARAY™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Molex Connector Corporation | |
| Series | SEARAY™ 46556 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | High Density Array, Male | |
| Number of Positions | 120 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 4 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Mated Stacking Heights | 7mm, 8mm, 8.5mm, 9.5mm, 10mm | |
| Height Above Board | 0.221" (5.63mm) | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 46556-3145 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
46556-3145 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 46556-3145 is new and unused, you can buy 46556-3145 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 46556-3145.
