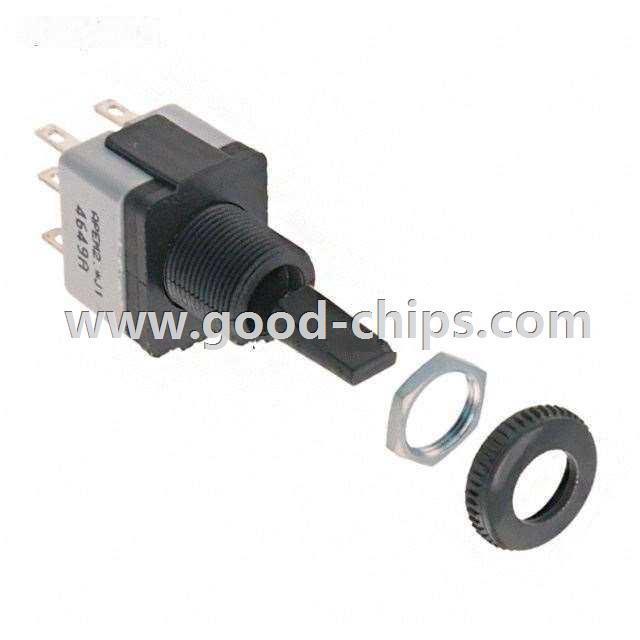

| Manufacturer Part Number: | 4649A22UU |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Toggle Switches |
| Available Quantity: | 9453 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4649A22UU Datasheet |
| Internal Part Number | 898-4649A22UU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 4600 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Apem Inc. | |
| Series | 4600 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 6A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Flatted | |
| Actuator Length | 13.50mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
| Panel Cutout Dimensions | Circular - 12.20mm Dia | |
| Bushing Thread | M12 x 0.75 | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | Polyamide (PA66), Nylon 6/6 | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | -20°C ~ 55°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4649A22UU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4649A22UU is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of 4649A22UU is new and unused, you can buy 4649A22UU Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4649A22UU.
