Manufacturer Part Number: | 4609X-AP1-103LF |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Resistor Networks, Arrays |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |

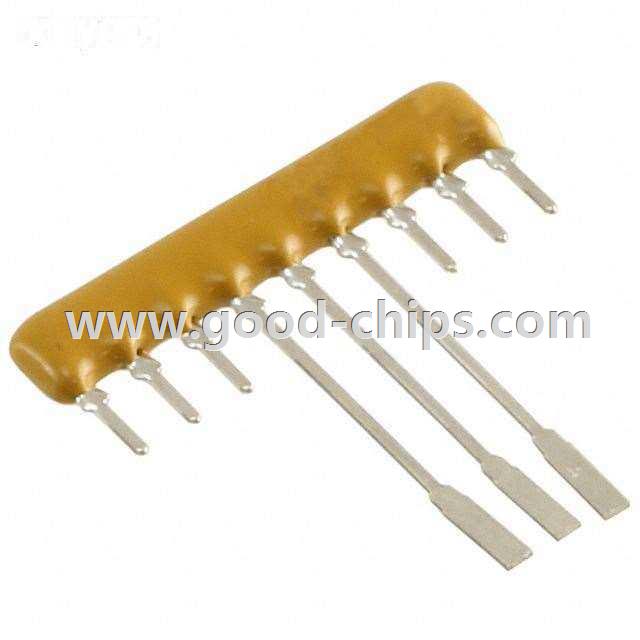

Description: | RES ARRAY 8 RES 10K OHM 9SIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 4609X-AP1-103LF Datasheet |
Internal Part Number | 898-4609X-AP1-103LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | 4300 vs. 4600 Model Bulletin | |
3D Model | 4609X.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 4600X Series | |
Category | Resistors | |
Family | Resistor Networks, Arrays | |
Manufacturer | Bourns Inc. | |
Series | 4600X | |
Packaging | Tape & Box (TB) | |
Part Status | Active | |
Circuit Type | Bussed | |
Resistance (Ohms) | 10k | |
Tolerance | ±2% | |
Number of Resistors | 8 | |
Number of Pins | 9 | |
Power Per Element | 200mW | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 125°C | |
Applications | - | |
Mounting Type | Through Hole | |
Package / Case | 9-SIP | |
Supplier Device Package | 9-SIP | |
Size / Dimension | 0.898" L x 0.098" W (22.81mm x 2.49mm) | |
Height | 0.200" (5.08mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 4609X-AP1-103LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
4609X-AP1-103LF is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 4609X-AP1-103LF is new and unused, you can buy 4609X-AP1-103LF Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4609X-AP1-103LF.
