Manufacturer Part Number: | 45212-620230 |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9187 Pieces |
Unit Price: | Quote by Email |

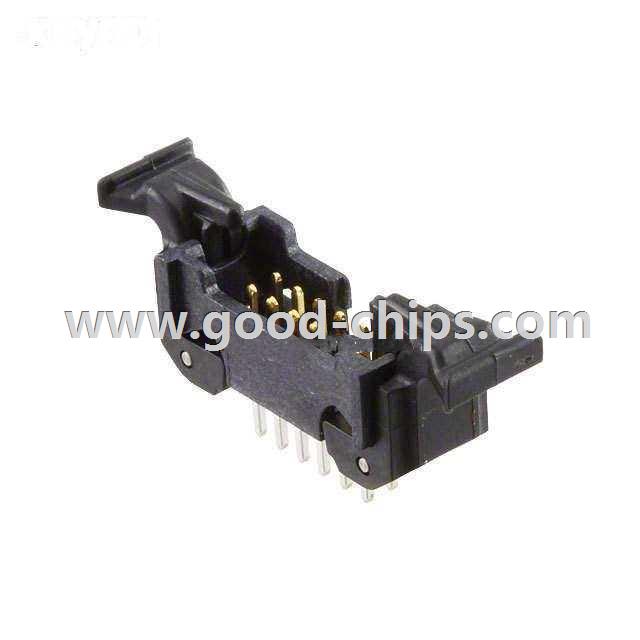

Description: | 12 Positions Header, Shrouded Connector 0.050" (1.27mm) Through Hole Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 45212-620230 Datasheet |
Internal Part Number | 898-45212-620230 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | 3M™ Wire-to-Board System, 450 Series Connector Animation | |
Featured Product | 3M 451 Series Socket Assemblies and 452 Series Board-Mount Headers | |
3D Model | 45212-6x02.igs 45212-6x02.stp 45212-6x02.x_t | |
Online Catalog | 452 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | 3M | |
Series | 452 | |
Packaging | Tray | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 12 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.050" (1.27mm) | |
Contact Mating Length | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Latch Lock/Eject Hooks, Short | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 45212-620230 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
45212-620230 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 45212-620230 is new and unused, you can buy 45212-620230 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 45212-620230.
