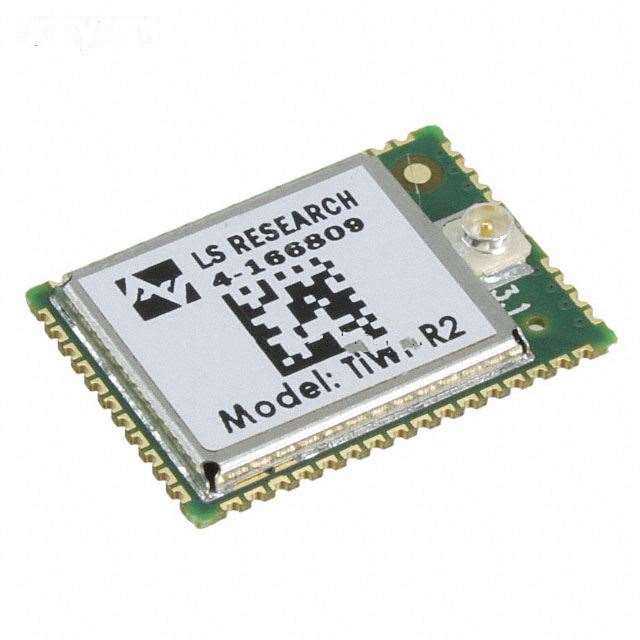

| Manufacturer Part Number: | 450-0037 |
|---|---|
| Manufacturer: | LSR |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD BLUETOOTH/WIFI U.FL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 450-0037 Datasheet |
| Internal Part Number | 898-450-0037 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 450-0036,37,52,64 Declaration of Conformity | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Online Catalog | TiWi-R2 LS Transceiver | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | LSR | |
| Series | TiWi-R2 | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | Bluetooth, WiFi | |
| Protocol | 802.11b/g/n, Bluetooth v2.1 + EDR, Class 1.5 | |
| Modulation | CCK, GFSK, OFDM | |
| Frequency | 2.4GHz | |
| Data Rate | 65Mbps | |
| Power - Output | 18.3dBm | |
| Sensitivity | -97dBm | |
| Serial Interfaces | SDIO, UART | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | - | |
| Voltage - Supply | 3 V ~ 4.8 V | |
| Current - Receiving | 41mA ~ 100mA | |
| Current - Transmitting | 43mA ~ 270mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 52-SMD Module | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 450-0037 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
450-0037 is in stock for immediate shipping now. We are the distributor of LSR all series components. The condition of 450-0037 is new and unused, you can buy 450-0037 LSR with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 450-0037.
