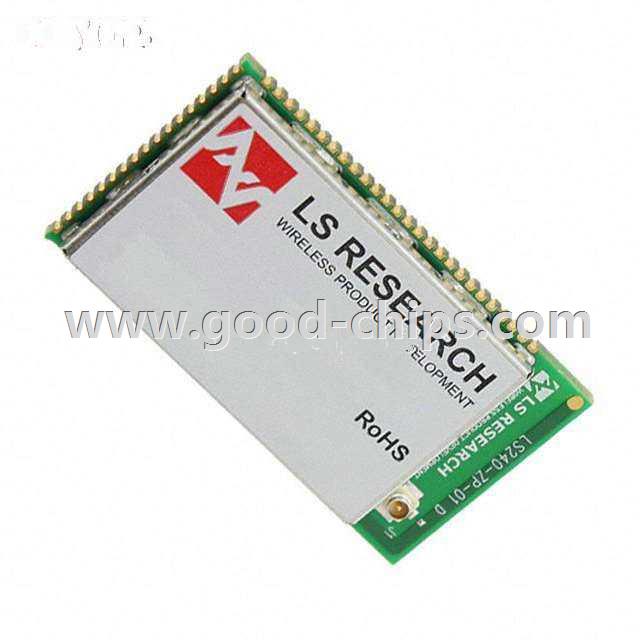

Manufacturer Part Number: | 450-0012 |
---|---|
Manufacturer: | LSR |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE 802.15.4 U.FL ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 450-0012 Datasheet |
Internal Part Number | 898-450-0012 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 450-0011,12,75,76 Declaration of Conformity | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | ProFlex Wireless Zigbee Module | |
PCN Obsolescence/ EOL | 450-00xx 15/Mar/2012 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | LSR | |
Series | Pro-Flex01 | |
Packaging | Tray | |
Part Status | Obsolete | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 250kbps | |
Power - Output | 20dBm | |
Sensitivity | -98dBm | |
Serial Interfaces | I²C, JTAG, SPI, UART | |
Antenna Type | Not Included, U.FL | |
Memory Size | 256kB Flash, 16kB RAM | |
Voltage - Supply | 2.2 V ~ 3.3 V | |
Current - Receiving | 30mA | |
Current - Transmitting | 145mA | |
Mounting Type | Through Hole | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 450-0012 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
450-0012 is in stock for immediate shipping now. We are the distributor of LSR all series components. The condition of 450-0012 is new and unused, you can buy 450-0012 LSR with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 450-0012.
