| Manufacturer Part Number: | 44764-1202 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9372 Pieces |
| Unit Price: | Quote by Email |

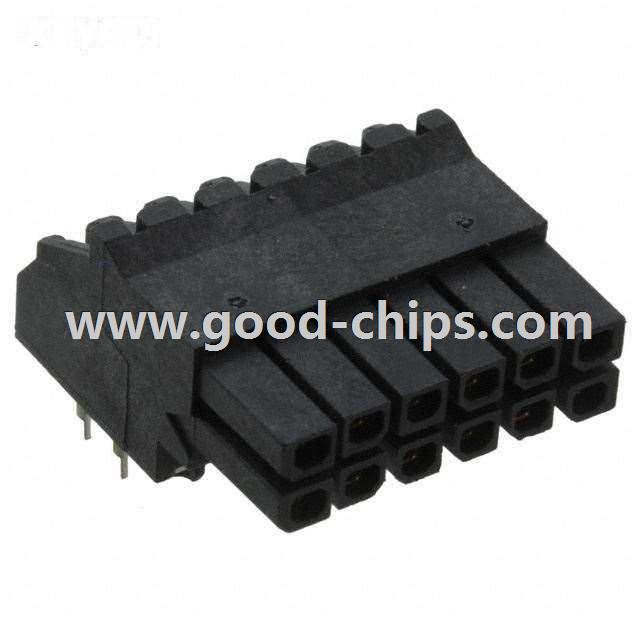

| Description: | 12 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 44764-1202 Datasheet |
| Internal Part Number | 898-44764-1202 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 44764-1202 Cert of Compliance | |
| Featured Product | Power Connectors | |
| 3D Model | 44764-1202.stp | |
| PCN Design/Specification | Tooling Replacement 15/Nov/2011 | |
| PCN Assembly/Origin | Various Series Tooling 22/Aug/2014 | |
| Online Catalog | Micro-Fit 3.0 BMI™ 44764 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Molex Connector Corporation | |
| Series | Micro-Fit 3.0 BMI™ 44764 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 12 | |
| Number of Positions Loaded | All | |
| Pitch | 0.118" (3.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.118" (3.00mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 44764-1202 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
44764-1202 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 44764-1202 is new and unused, you can buy 44764-1202 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 44764-1202.
