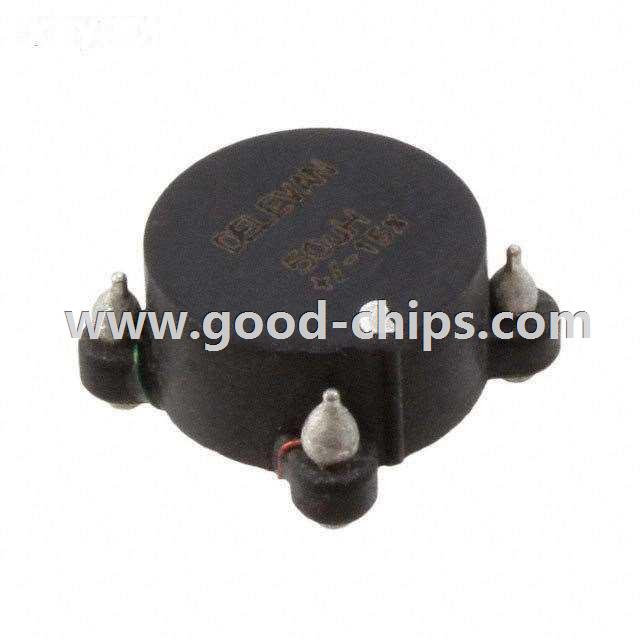

| Manufacturer Part Number: | 4448R-112M |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Unshielded 2 Coil Inductor Array 32µH Inductance - Connected in Series 8µH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 3.5A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4448R-112M Datasheet |
| Internal Part Number | 898-4448R-112M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | API Delevan Inc. | |
| Series | 4448R | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 32µH | |
| Inductance - Connected In Parallel | 8µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 3.5A | |
| Current Rating - Series | 1.75A | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | 19 mOhm Max | |
| DC Resistance (DCR) - Series | 76 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.530" L x 0.530" W (13.46mm x 13.46mm) | |
| Height | 0.310" (7.87mm) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4448R-112M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4448R-112M is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 4448R-112M is new and unused, you can buy 4448R-112M API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4448R-112M.
