| Manufacturer Part Number: | 43680-2003 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Blade Type Power Connectors - Housings |
| Available Quantity: | 9425 Pieces |
| Unit Price: | Quote by Email |

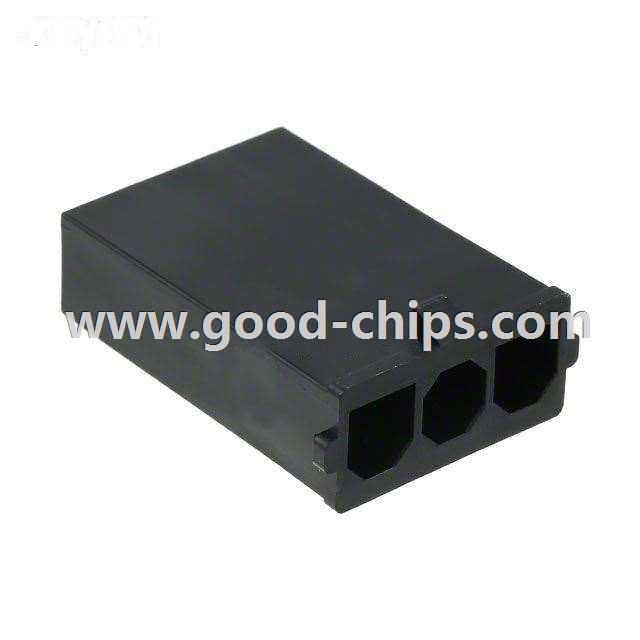

| Description: | 3 Position Blade Type Power Housing Connector Plug Black 0.295" (7.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 43680-2003 Datasheet |
| Internal Part Number | 898-43680-2003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 43680-2003 Cert of Compliance | |
| Featured Product | Sabre™ Power Connectors Power Connectors | |
| 3D Model | 43680-2003.stp | |
| PCN Design/Specification | Multiple Devices Terminal Retention Force 09/May/2016 172673yyyy,43680yyyy 07/Jun/2016 | |
| PCN Assembly/Origin | Multiple Devices Additional Supplier 04/Apr/2016 | |
| Online Catalog | Sabre™ | |
| Category | Connectors, Interconnects | |
| Family | Blade Type Power Connectors - Housings | |
| Manufacturer | Molex Connector Corporation | |
| Series | Sabre™ 43680 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Male Blade | |
| Number of Positions | 3 | |
| Pitch | 0.295" (7.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Color | Black | |
| Features | - | |
| Stacking Direction | Side to Side | |
| Fastening Type | Locking Ramp | |
| Note | Contacts Not Provided | |
| Voltage Rating | - | |
| Current Rating | 18A | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Operating Temperature | -40°C ~ 75°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 43680-2003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
43680-2003 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 43680-2003 is new and unused, you can buy 43680-2003 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 43680-2003.
