Manufacturer Part Number: | 43650-1212 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9644 Pieces |
Unit Price: | Quote by Email |

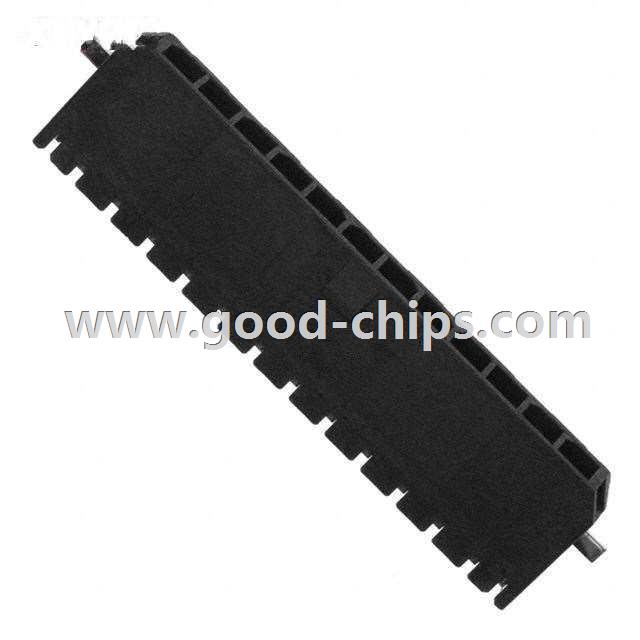

Description: | 12 Positions Header, Shrouded Connector 0.118" (3.00mm) Surface Mount, Right Angle Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 43650-1212 Datasheet |
Internal Part Number | 898-43650-1212 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Connectors | |
Video File | Molex - Product of the Quarter - Mini-Fit® | |
RoHS Information | 43650-1212 Cert of Compliance | |
Featured Product | Micro-Fit 3.0™ Interconnect System Power Connectors | |
3D Model | 43650-1212.stp 43650-1212 .pdf | |
PCN Design/Specification | Multiple Devices 13/Apr/2015 | |
PCN Assembly/Origin | 43650, 68532, 79540 Series 22/Apr/2015 | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Molex Connector Corporation | |
Series | Micro-Fit 3.0™ 43650 | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 12 | |
Number of Positions Loaded | All | |
Pitch | 0.118" (3.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Fastening Type | Locking Ramp | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 100µin (2.54µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 43650-1212 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
43650-1212 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 43650-1212 is new and unused, you can buy 43650-1212 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 43650-1212.
