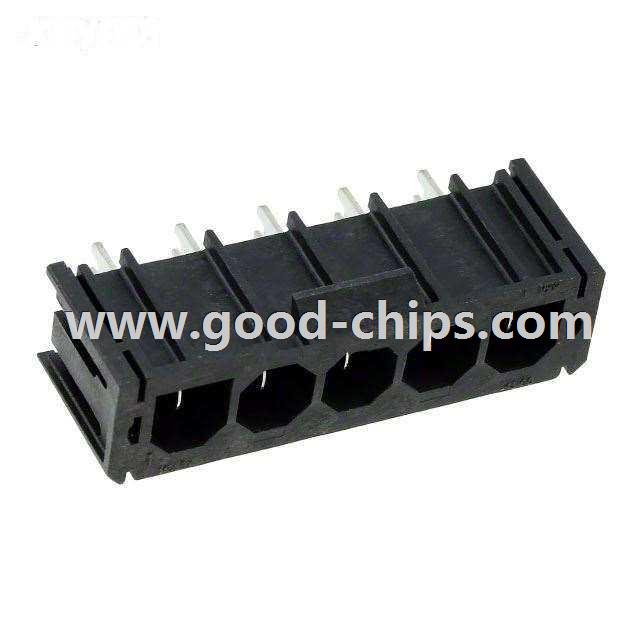

| Manufacturer Part Number: | 43160-1105 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Blade Type Power Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HDR 5POS 7.50MM R/A SLDR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 43160-1105 Datasheet |
| Internal Part Number | 898-43160-1105 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| RoHS Information | 43160-1105 Cert of Compliance | |
| Featured Product | Sabre™ Power Connectors Power Connectors | |
| 3D Model | 43160-1105.stp | |
| Online Catalog | Sabre™ 43160 Series | |
| Category | Connectors, Interconnects | |
| Family | Blade Type Power Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | Sabre™ 43160 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | - | |
| Connector Type | Header, Male Blades | |
| Number of Positions | 5 | |
| Pitch | 0.295" (7.50mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Termination | Solder | |
| Wire Gauge | - | |
| Features | - | |
| Color | Black | |
| Fastening Type | Locking Ramp | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 60µin (1.52µm) | |
| Voltage Rating | 600V | |
| Current Rating | 18A | |
| Material - Insulation | Polyamide (PA46), Nylon 4/6, Glass Filled | |
| Operating Temperature | -40°C ~ 75°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 43160-1105 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
43160-1105 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 43160-1105 is new and unused, you can buy 43160-1105 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 43160-1105.
