Manufacturer Part Number: | 43045-2202 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9186 Pieces |
Unit Price: | Quote by Email |

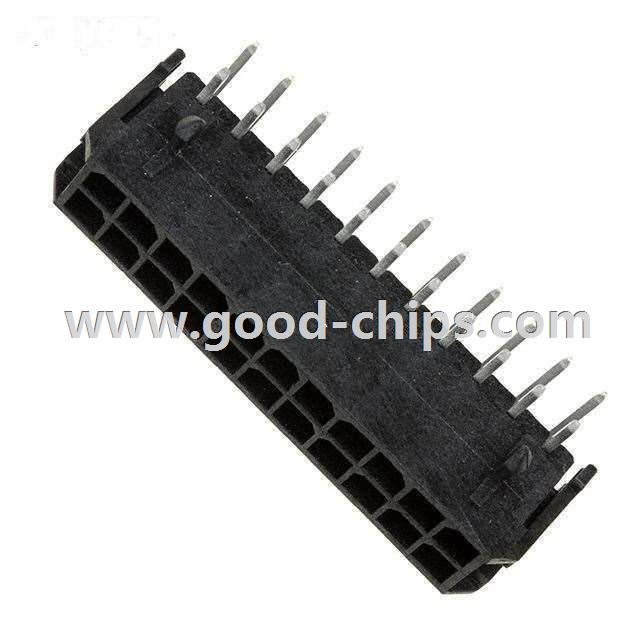

Description: | 22 Positions Header, Shrouded Connector 0.118" (3.00mm) Through Hole, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 43045-2202 Datasheet |
Internal Part Number | 898-43045-2202 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Connectors | |
Video File | Molex - Product of the Quarter - Mini-Fit® Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 43045-2202 Cert of Compliance | |
Featured Product | Micro-Fit 3.0™ Interconnect System Power Connectors | |
3D Model | 43045-2202.stp 43045-2202 .pdf | |
Online Catalog | Micro-Fit 3.0™ Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Molex Connector Corporation | |
Series | Micro-Fit 3.0™ 43045 | |
Packaging | Tray | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 22 | |
Number of Positions Loaded | All | |
Pitch | 0.118" (3.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.118" (3.00mm) | |
Contact Mating Length | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | Locking Ramp | |
Features | Board Lock | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 43045-2202 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
43045-2202 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 43045-2202 is new and unused, you can buy 43045-2202 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 43045-2202.
