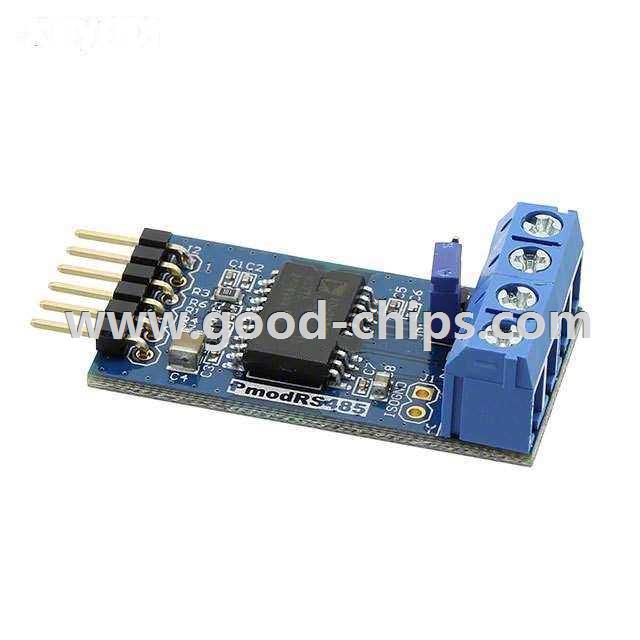

| Manufacturer Part Number: | 410-310 |
|---|---|
| Manufacturer: | Digilent, Inc. |
| Product Category: | Digital Isolators |
| Available Quantity: | 9073 Pieces |
| Unit Price: | Quote by Email |
| Description: | RS422, RS485 Digital Isolator 2500Vrms 3 Channel 16Mbps 15kV/µs CMTI Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 410-310 Datasheet |
| Internal Part Number | 898-410-310 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | PmodRS485 Schematics | |
| Online Catalog | ADM2582E/ADM2587E Series | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Digilent, Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Technology | Magnetic Coupling | |
| Type | RS422, RS485 | |
| Isolated Power | Yes | |
| Number of Channels | 3 | |
| Inputs - Side 1/Side 2 | 2/1 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 2500Vrms | |
| Common Mode Transient Immunity (Min) | 15kV/µs | |
| Data Rate | 16Mbps | |
| Propagation Delay tpLH / tpHL (Max) | - | |
| Pulse Width Distortion (Max) | - | |
| Rise / Fall Time (Typ) | - | |
| Voltage - Supply | 3.3V, 5V | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Supplier Device Package | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 410-310 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
410-310 is in stock for immediate shipping now. We are the distributor of Digilent, Inc. all series components. The condition of 410-310 is new and unused, you can buy 410-310 Digilent, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 410-310.
