Manufacturer Part Number: | 410-233 |
---|---|
Manufacturer: | Digilent, Inc. |
Product Category: | Evaluation Boards - Audio Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

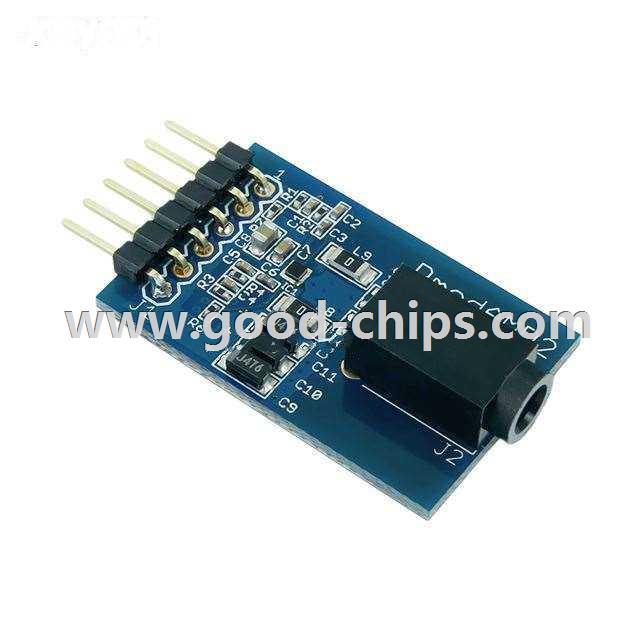

Description: | SSM2377 - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 410-233 Datasheet |
Internal Part Number | 898-410-233 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | PmodAMP2 Schematics Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Audio Amplifiers | |
Manufacturer | Digilent, Inc. | |
Series | - | |
Part Status | Active | |
Amplifier Type | Class D | |
Output Type | 1-Channel (Mono) | |
Max Output Power x Channels @ Load | 3.17W x 1 @ 4 Ohm | |
Voltage - Supply | 2.5 V ~ 5 V | |
Board Type | Fully Populated | |
Utilized IC / Part | SSM2377 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 410-233 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
410-233 is in stock for immediate shipping now. We are the distributor of Digilent, Inc. all series components. The condition of 410-233 is new and unused, you can buy 410-233 Digilent, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 410-233.
