Manufacturer Part Number: | 410-142 |
---|---|
Manufacturer: | Digilent, Inc. |
Product Category: | Evaluation Boards - Expansion Boards |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

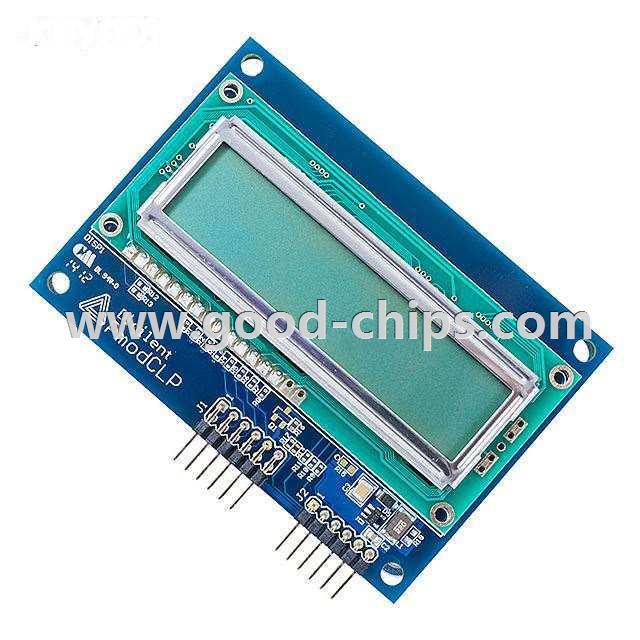

Description: | KS0066 Character LCD 16x2 Display Pmod™ Platform Evaluation Expansion Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 410-142 Datasheet |
Internal Part Number | 898-410-142 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | PmodCLP Schematics RevB | |
Featured Product | Peripheral Modules | |
Online Catalog | PmodCLP: Character LCD with Parallel Interface | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Expansion Boards | |
Manufacturer | Digilent, Inc. | |
Series | - | |
Part Status | Active | |
Platform | Pmod™ | |
Type | Display | |
Function | Character LCD 16x2 | |
Utilized IC / Part | KS0066 | |
Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 410-142 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
410-142 is in stock for immediate shipping now. We are the distributor of Digilent, Inc. all series components. The condition of 410-142 is new and unused, you can buy 410-142 Digilent, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 410-142.
