| Manufacturer Part Number: | 410-113 |
|---|---|
| Manufacturer: | Digilent, Inc. |
| Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |

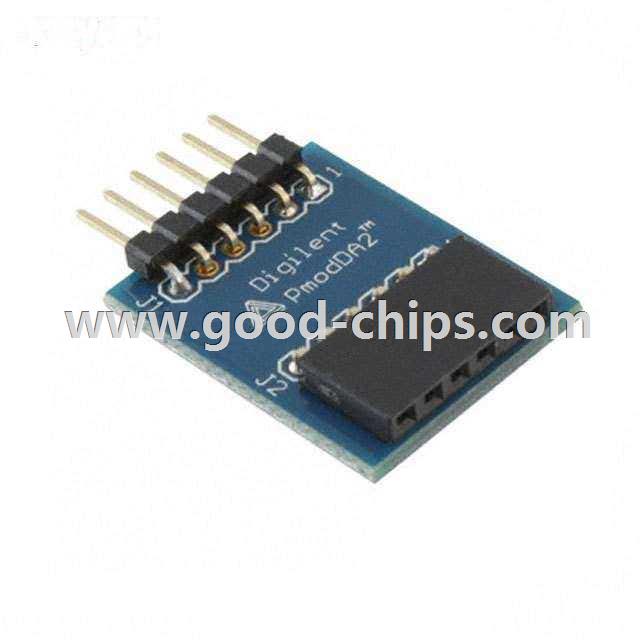

| Description: | DAC121S101 12 Bit Digital to Analog Converter (DAC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 410-113 Datasheet |
| Internal Part Number | 898-410-113 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | PmodDA2 Schematics PmodDA2/DACSPI2 Files Development Tool Selector | |
| Featured Product | Peripheral Modules | |
| Online Catalog | DAC121S101 PmodDA2™ Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
| Manufacturer | Digilent, Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of DAC's | 2 | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | - | |
| Data Interface | MICROWIRE™, Serial, SPI™ | |
| Settling Time | 12µs | |
| DAC Type | Voltage | |
| Operating Temperature | -40°C ~ 125°C | |
| Supplied Contents | Board | |
| Utilized IC / Part | DAC121S101 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 410-113 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
410-113 is in stock for immediate shipping now. We are the distributor of Digilent, Inc. all series components. The condition of 410-113 is new and unused, you can buy 410-113 Digilent, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 410-113.
