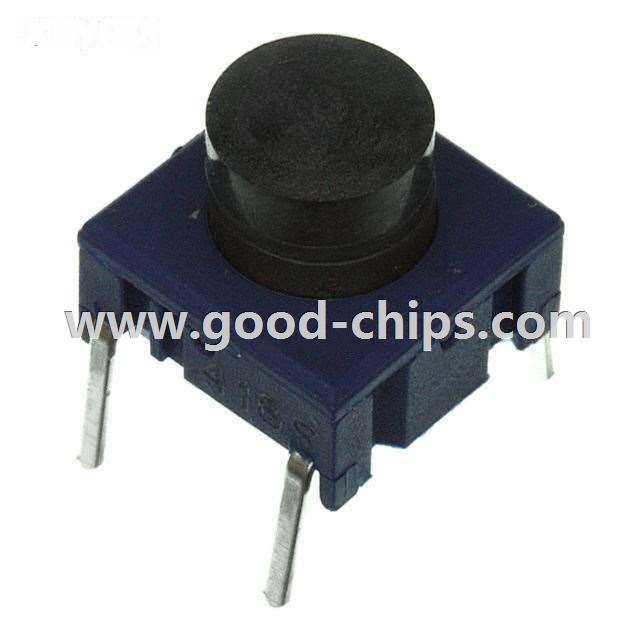

Manufacturer Part Number: | 3ETL9-09.5 |
---|---|
Manufacturer: | MEC Switches |
Product Category: | Tactile Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3ETL9-09.5 Datasheet |
Internal Part Number | 898-3ETL9-09.5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switches | |
Category | Switches | |
Family | Tactile Switches | |
Manufacturer | MEC Switches | |
Series | Multimec® 3 | |
Packaging | Tube | |
Part Status | Obsolete | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Contact Rating @ Voltage | 0.05A @ 24VDC | |
Actuator Type | Standard | |
Mounting Type | Through Hole | |
Actuator Height off PCB, from Pins | 9.50mm | |
Actuator Orientation | Top Actuated | |
Termination Style | PC Pin | |
Outline | 10.10mm x 10.10mm | |
Illumination | Non-Illuminated | |
Illumination Voltage (Nominal) | - | |
Illumination Type, Color | - | |
Operating Force | 300gf | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Sealed - Flux Protection | |
Actuator Material | Polybutylene Terephthalate (PBT) | |
Switch Travel | 1.00mm | |
Mechanical Life | 10,000,000 Cycles | |
Operating Temperature | -40°C ~ 115°C | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3ETL9-09.5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3ETL9-09.5 is in stock for immediate shipping now. We are the distributor of MEC Switches all series components. The condition of 3ETL9-09.5 is new and unused, you can buy 3ETL9-09.5 MEC Switches with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3ETL9-09.5.
