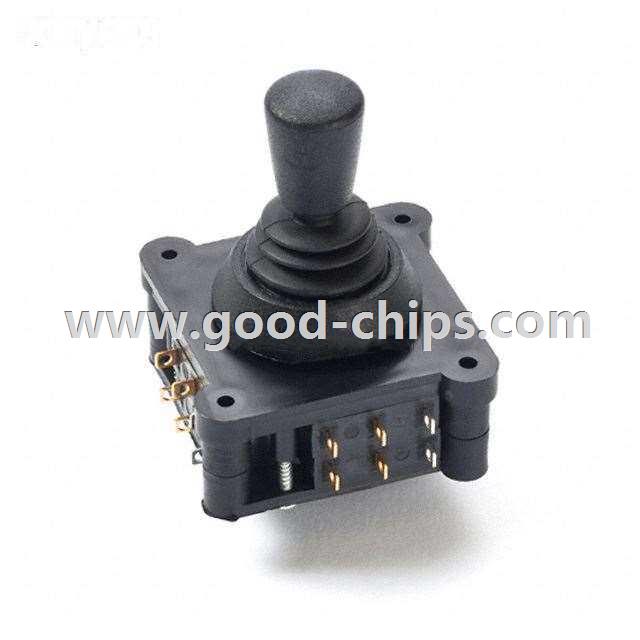

3D27F1534

3D27F1534
Manufacturer Part Number:3D27F1534
Manufacturer:
Product Category:Navigation Switches, Joystick
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Joystick, 2 - Axis Digital (Mechanical Switch) Output
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 3D27F1534 Datasheet
3D27F1534´s Parameters
Internal Part Number898-3D27F1534
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesJoysticks - Microswitch Based
CategorySwitches
FamilyNavigation Switches, Joystick
ManufacturerApem Inc.
Series1000
Part StatusActive
TypeJoystick, 2 - Axis
Actuator TypeJoystick
Switch Function4-Way Directional
Functions, Extra-
OutputDigital (Mechanical Switch)
Voltage - Supply-
Current Rating10A (AC)
Voltage Rating - AC250V
Voltage Rating - DC-
Contact MaterialSilver (Ag)
Contact Finish-
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-20°C ~ 50°C
Panel Cutout DimensionsCircular - 22.00mm Dia
Ingress ProtectionIP65 - Dust Tight, Water Resistant
FeaturesIncludes Limiter and Bezel Set
Mechanical Life5,000,000 Cycles
Electrical Life-
Operating Force-
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part3D27F1534
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

3D27F1534 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of 3D27F1534 is new and unused, you can buy 3D27F1534 Apem Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 3D27F1534.
