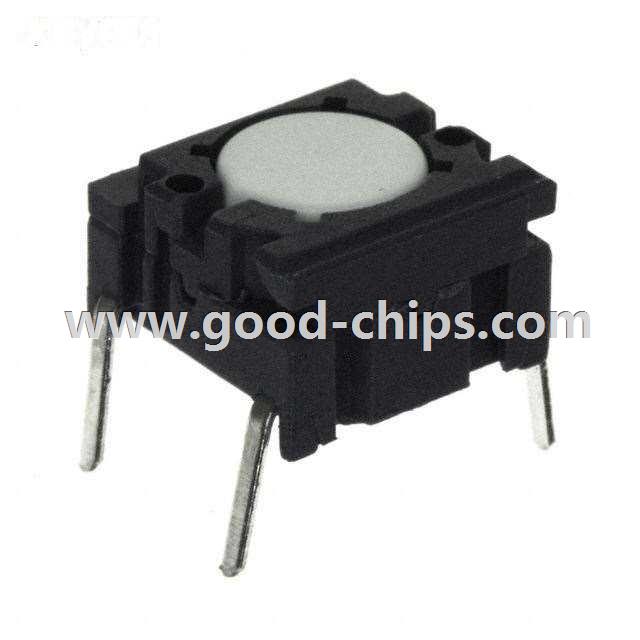

| Manufacturer Part Number: | 3ATL6 |
|---|---|
| Manufacturer: | MEC Switches |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3ATL6 Datasheet |
| Internal Part Number | 898-3ATL6 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switches | |
| PCN Obsolescence/ EOL | Low-Temperature Switches 18/Jul/2014 | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | MEC Switches | |
| Series | Multimec® 3 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, from Pins | 6.40mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 10.10mm x 10.10mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 300gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Sealed - Flux Protection | |
| Actuator Material | Polybutylene Terephthalate (PBT) | |
| Switch Travel | 1.00mm | |
| Mechanical Life | 10,000,000 Cycles | |
| Operating Temperature | -40°C ~ 115°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3ATL6 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3ATL6 is in stock for immediate shipping now. We are the distributor of MEC Switches all series components. The condition of 3ATL6 is new and unused, you can buy 3ATL6 MEC Switches with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3ATL6.
