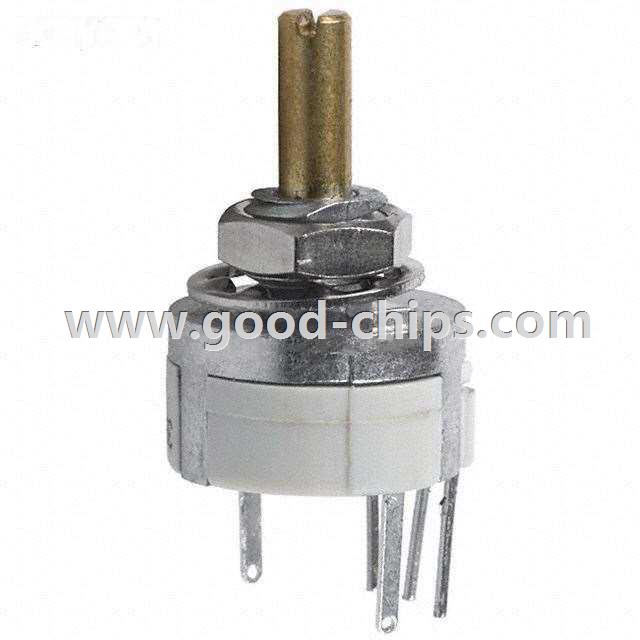

| Manufacturer Part Number: | 39SA-1RB-503 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Rotary Potentiometers, Rheostats |
| Available Quantity: | 9509 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50k Ohm 1 Gang Linear Panel Mount Potentiometer Rotary, SPST 1 Turn Conductive Plastic 0.25W, 1/4W PC Pins |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39SA-1RB-503 Datasheet |
| Internal Part Number | 898-39SA-1RB-503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 39 Material Declaration | |
| 3D Model | 39XA-XRX-yyy.stp | |
| PCN Design/Specification | Model 39 Series Spring and Rotor Design 01/Oct/2013 | |
| PCN Other | Multiple Changes 01/Dec/2012 | |
| Online Catalog | 39 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Rotary Potentiometers, Rheostats | |
| Manufacturer | Bourns Inc. | |
| Series | 39 | |
| Packaging | Tray | |
| Part Status | Active | |
| Taper | Linear | |
| Resistance (Ohms) | 50k | |
| Tolerance | ±20% | |
| Number of Gangs | 1 | |
| Built in Switch | Rotary, SPST | |
| Power (Watts) | 0.25W, 1/4W | |
| Temperature Coefficient | - | |
| Number of Turns | 1 | |
| Rotation | 270° | |
| Adjustment Type | Top Adjustment | |
| Resistive Material | Conductive Plastic | |
| Termination Style | PC Pins | |
| Actuator Type | Slotted | |
| Actuator Length | 0.500" (12.70mm) | |
| Actuator Diameter | 0.125" (3.18mm) | |
| Bushing Thread | 1/4-28 | |
| Mounting Type | Panel Mount | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39SA-1RB-503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39SA-1RB-503 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 39SA-1RB-503 is new and unused, you can buy 39SA-1RB-503 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39SA-1RB-503.
