| Manufacturer Part Number: | 39522-1009 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

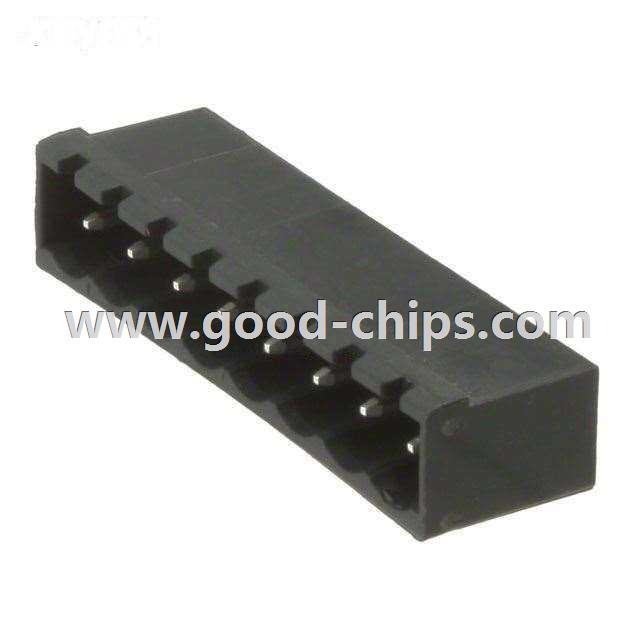

| Description: | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39522-1009 Datasheet |
| Internal Part Number | 898-39522-1009 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 39522-1009 Cert of Compliance | |
| 3D Model | 39522-1009.stp | |
| Online Catalog | Eurostyle™ ESE Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Headers, Plugs and Sockets | |
| Manufacturer | Molex Connector Corporation | |
| Series | Eurostyle™ ESE 39522 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Header, Male Pins, Shrouded (4 Side) | |
| Number of Positions | 9 | |
| Positions Per Level | 9 | |
| Number of Levels | 1 | |
| Pitch | 0.197" (5.00mm) | |
| Header Orientation | 90°, Right Angle | |
| Plug Wire Entry | - | |
| Termination Style | Solder | |
| Mounting Type | Through Hole | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 15A | |
| Voltage - UL | 300V | |
| Wire Gauge or Range - AWG | - | |
| Wire Gauge or Range - mm² | - | |
| Color | Black | |
| Operating Temperature | -40°C ~ 105°C | |
| Contact Mating Finish | Tin | |
| Features | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39522-1009 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39522-1009 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39522-1009 is new and unused, you can buy 39522-1009 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39522-1009.
