Manufacturer Part Number: | 39521-1006 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9063 Pieces |
Unit Price: | Quote by Email |

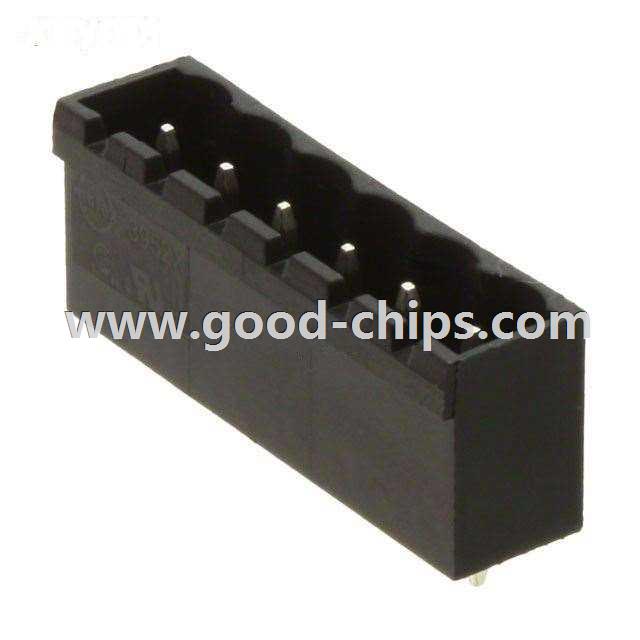

Description: | 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 39521-1006 Datasheet |
Internal Part Number | 898-39521-1006 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 39521-1006 Cert of Compliance | |
3D Model | 39521-1006.stp | |
Online Catalog | Eurostyle™ ESE Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Molex Connector Corporation | |
Series | Eurostyle™ ESE 39521 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 6 | |
Positions Per Level | 6 | |
Number of Levels | 1 | |
Pitch | 0.197" (5.00mm) | |
Header Orientation | Vertical | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 15A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Black | |
Operating Temperature | -40°C ~ 105°C | |
Contact Mating Finish | Tin | |
Features | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 39521-1006 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
39521-1006 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39521-1006 is new and unused, you can buy 39521-1006 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39521-1006.
