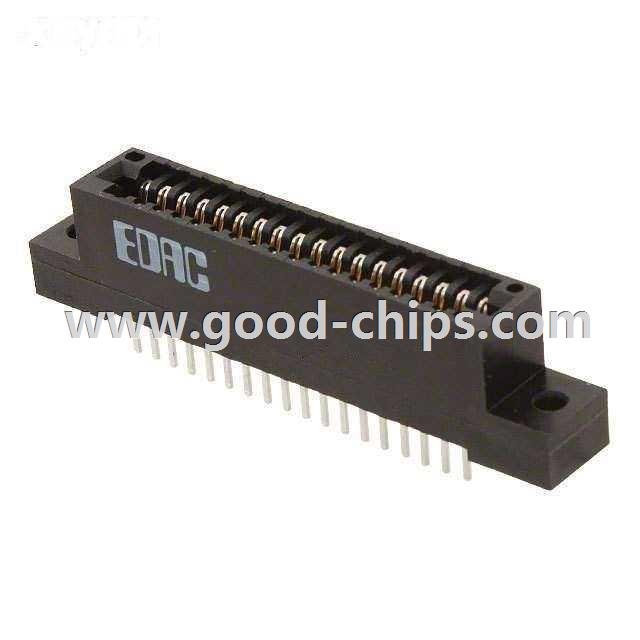

| Manufacturer Part Number: | 395-036-520-202 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN CARDEDGE 36POS .100 X .200 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 395-036-520-202 Datasheet |
| Internal Part Number | 898-395-036-520-202 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 345 and 395 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | EDAC Inc. | |
| Series | 395 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 18 | |
| Number of Positions | 36 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.100" (2.54mm) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Material | Copper, Nickel, Tin Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | |
| Operating Temperature | -65°C ~ 105°C | |
| Material - Insulation | Polyester Thermoplastic | |
| Read Out | Dual | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 395-036-520-202 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
395-036-520-202 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 395-036-520-202 is new and unused, you can buy 395-036-520-202 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 395-036-520-202.
