| Manufacturer Part Number: | 39100-0805 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Barrier Blocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

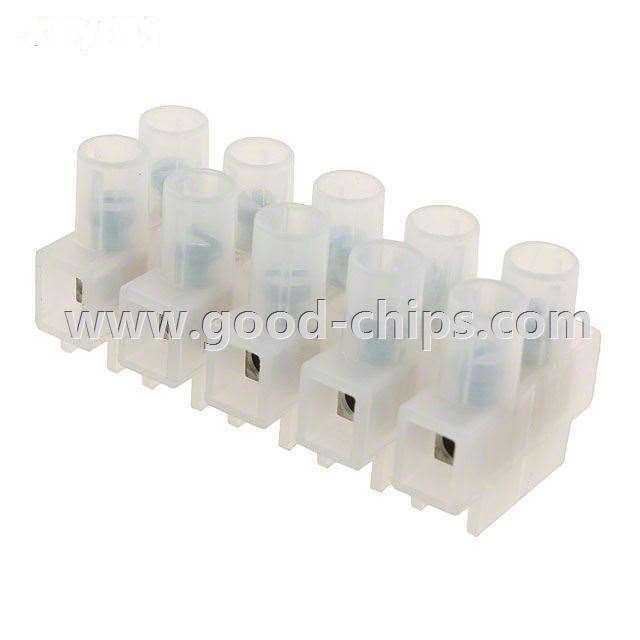

| Description: | 5 Circuit 0.315" (8.00mm) Eurostyle Terminal Strip Connector, Screws |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39100-0805 Datasheet |
| Internal Part Number | 898-39100-0805 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 39100-0805 Cert of Compliance | |
| 3D Model | 39100-0805.stp | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Barrier Blocks | |
| Manufacturer | Molex Connector Corporation | |
| Series | Eurostyle™ 39100 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Terminal Block Type | Eurostyle Terminal Strip | |
| Number of Circuits | 5 | |
| Number of Wire Entries | 10 | |
| Pitch | 0.315" (8.00mm) | |
| Number of Rows | 2 | |
| Current Rating | 20A | |
| Voltage Rating | 600V | |
| Wire Gauge | 12-22 AWG | |
| Top Termination | Screws | |
| Bottom Termination | Closed | |
| Barrier Type | Enclosed | |
| Features | - | |
| Color | Clear | |
| Terminal Screw Material | Steel | |
| Terminal Screw Finish | Zinc | |
| Mounting Type | Chassis, Panel | |
| Operating Temperature | 100°C | |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 | |
| Material Flammability Rating | UL94 V-2 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39100-0805 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39100-0805 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39100-0805 is new and unused, you can buy 39100-0805 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39100-0805.
