| Manufacturer Part Number: | 39-30-1241 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9285 Pieces |
| Unit Price: | Quote by Email |

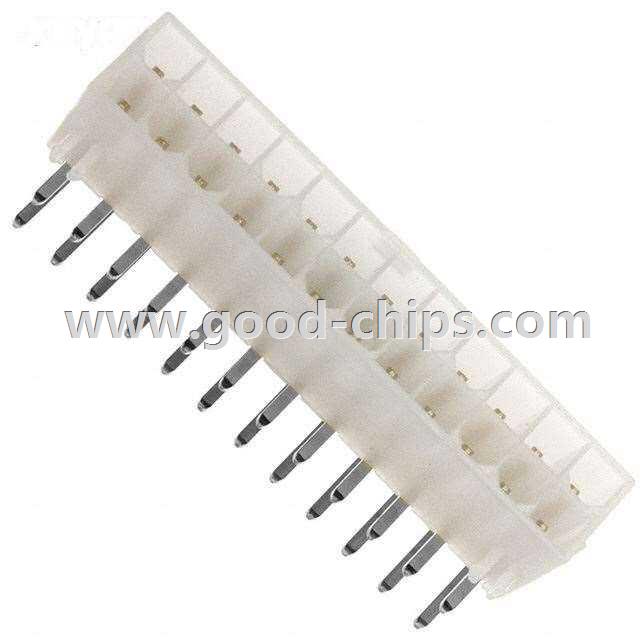

| Description: | 24 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39-30-1241 Datasheet |
| Internal Part Number | 898-39-30-1241 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Mini-Fit JR Color Variation | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit Jr Molex - Product of the Quarter - Mini-Fit® Molex RF Connectors | Digi-Key Daily | |
| Featured Product | Power Connectors | |
| 3D Model | 39-30-1241.stp 39-30-1241 .pdf | |
| PCN Design/Specification | Gold Plating Removal 01/Aug/2011 | |
| Online Catalog | Mini-Fit Jr™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex Connector Corporation | |
| Series | Mini-Fit® Jr™ 5569 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 24 | |
| Number of Positions Loaded | All | |
| Pitch | 0.165" (4.20mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.165" (4.20mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Lock | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Natural | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39-30-1241 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39-30-1241 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39-30-1241 is new and unused, you can buy 39-30-1241 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39-30-1241.
