| Manufacturer Part Number: | 39-00-0156 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Contacts |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

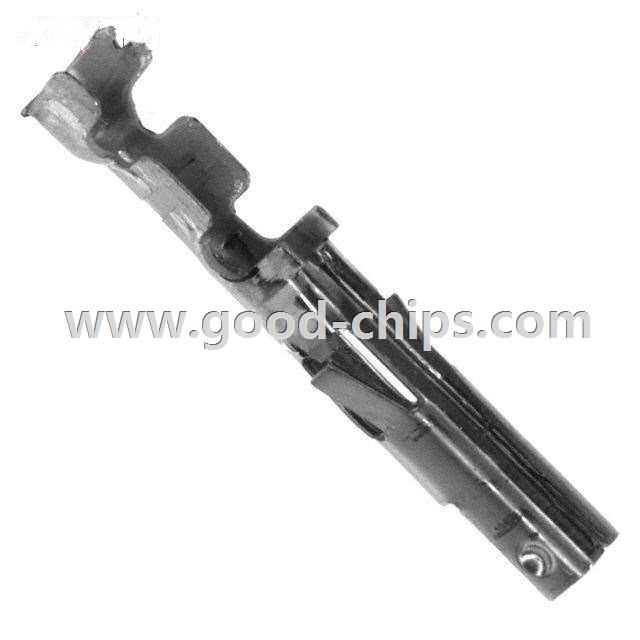

| Description: | CONN TERM FEMALE 22-28AWG 30GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39-00-0156 Datasheet |
| Internal Part Number | 898-39-00-0156 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Mini-Fit Jr | |
| RoHS Information | 39-00-0156 Cert of Compliance | |
| Featured Product | Power Connectors | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Contacts | |
| Manufacturer | Molex, LLC | |
| Series | Mini-Fit® Jr™ 5556 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Power | |
| Pin or Socket | Socket | |
| Contact Termination | Crimp | |
| Wire Gauge | 22-28 AWG | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39-00-0156 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39-00-0156 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39-00-0156 is new and unused, you can buy 39-00-0156 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39-00-0156.
