| Manufacturer Part Number: | 38760-0122 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Barrier Blocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

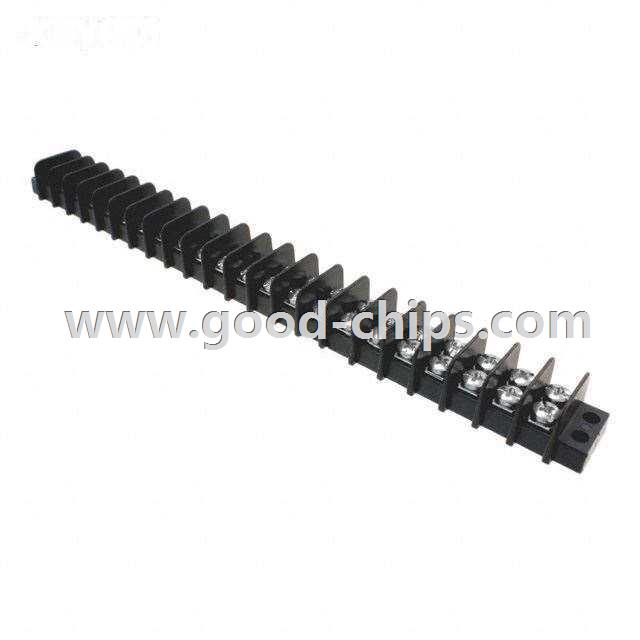

| Description: | 22 Circuit 0.375" (9.53mm) Barrier Block Connector, Screws |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 38760-0122 Datasheet |
| Internal Part Number | 898-38760-0122 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Beau™ Barrier Strips | |
| 3D Model | 38760-0122.stp | |
| PCN Assembly/Origin | Multiple Devices 26/Jan/2015 | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Barrier Blocks | |
| Manufacturer | Molex Connector Corporation | |
| Series | Beau™ 38760 | |
| Packaging | Tray | |
| Part Status | Active | |
| Terminal Block Type | Barrier Block | |
| Number of Circuits | 22 | |
| Number of Wire Entries | 44 | |
| Pitch | 0.375" (9.53mm) | |
| Number of Rows | 2 | |
| Current Rating | 15A | |
| Voltage Rating | 300V | |
| Wire Gauge | 14-22 AWG | |
| Top Termination | Screws | |
| Bottom Termination | Closed | |
| Barrier Type | 2 Wall (Dual) | |
| Features | Flange | |
| Color | Black | |
| Terminal Screw Material | Steel | |
| Terminal Screw Finish | Zinc, Clear Chromate | |
| Mounting Type | Chassis, Panel | |
| Operating Temperature | - | |
| Material - Insulation | Thermoplastic | |
| Material Flammability Rating | UL94 V-0 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 38760-0122 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
38760-0122 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 38760-0122 is new and unused, you can buy 38760-0122 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 38760-0122.
