| Manufacturer Part Number: | 38660-7803 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Barrier Blocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

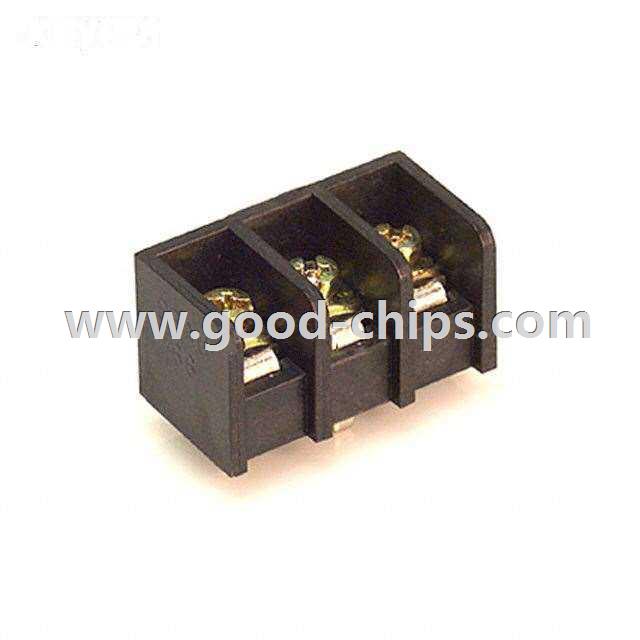

| Description: | 3 Circuit 0.500" (12.70mm) Barrier Block Connector, Screws with Captive Plate |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 38660-7803 Datasheet |
| Internal Part Number | 898-38660-7803 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 38660-7803.stp | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Barrier Blocks | |
| Manufacturer | Molex Connector Corporation | |
| Series | Beau™ 38660 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Terminal Block Type | Barrier Block | |
| Number of Circuits | 3 | |
| Number of Wire Entries | 3 | |
| Pitch | 0.500" (12.70mm) | |
| Number of Rows | 1 | |
| Current Rating | 45A | |
| Voltage Rating | 600V | |
| Wire Gauge | 8-18 AWG | |
| Top Termination | Screws with Captive Plate | |
| Bottom Termination | PC Pin | |
| Barrier Type | 3 Wall (Tri) | |
| Features | - | |
| Color | Black | |
| Terminal Screw Material | Steel | |
| Terminal Screw Finish | Zinc, Yellow Chromate | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 110°C | |
| Material - Insulation | Thermoplastic | |
| Material Flammability Rating | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 38660-7803 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
38660-7803 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 38660-7803 is new and unused, you can buy 38660-7803 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 38660-7803.
