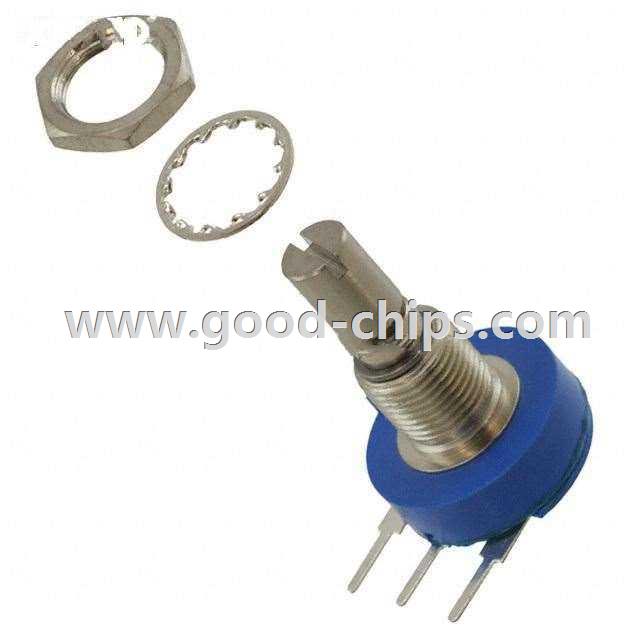

| Manufacturer Part Number: | 3856A-286-103AL |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Rotary Potentiometers, Rheostats |
| Available Quantity: | 9301 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 3.75 Turn Cermet 2W PC Pins |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3856A-286-103AL Datasheet |
| Internal Part Number | 898-3856A-286-103AL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | PBT Resin Jun/2011 | |
| PCN Other | Multiple Changes 01/Dec/2012 | |
| Online Catalog | 3852 and 3856 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Rotary Potentiometers, Rheostats | |
| Manufacturer | Bourns Inc. | |
| Series | 3856 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Taper | Linear | |
| Resistance (Ohms) | 10k | |
| Tolerance | ±10% | |
| Number of Gangs | 1 | |
| Built in Switch | None | |
| Power (Watts) | 2W | |
| Temperature Coefficient | ±150ppm/°C | |
| Number of Turns | 3.75 | |
| Rotation | 1350° | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Cermet | |
| Termination Style | PC Pins | |
| Actuator Type | Slotted | |
| Actuator Length | 0.875" (22.23mm) | |
| Actuator Diameter | 0.250" (6.35mm) | |
| Bushing Thread | 3/8-32 | |
| Mounting Type | Panel Mount | |
| Standard Package | 45 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3856A-286-103AL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3856A-286-103AL is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3856A-286-103AL is new and unused, you can buy 3856A-286-103AL Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3856A-286-103AL.
