Manufacturer Part Number: | 38211-0120 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminal Blocks - Barrier Blocks |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

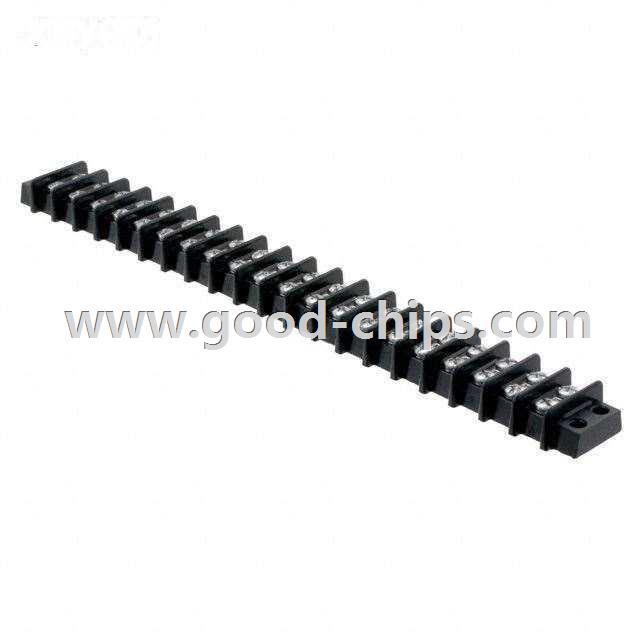

Description: | 20 Circuit 0.563" (14.30mm) Barrier Block Connector, Screws |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 38211-0120 Datasheet |
Internal Part Number | 898-38211-0120 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Beau™ Barrier Strips | |
PCN Obsolescence/ EOL | Multiple Series 12/Dec/2014 | |
PCN Assembly/Origin | Multiple Devices 11/Feb/2015 | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Barrier Blocks | |
Manufacturer | Molex Connector Corporation | |
Series | Beau™ 38211 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Terminal Block Type | Barrier Block | |
Number of Circuits | 20 | |
Number of Wire Entries | 40 | |
Pitch | 0.563" (14.30mm) | |
Number of Rows | 2 | |
Current Rating | 30A | |
Voltage Rating | 300V | |
Wire Gauge | 10-18 AWG | |
Top Termination | Screws | |
Bottom Termination | Closed | |
Barrier Type | 2 Wall (Dual) | |
Features | Flange | |
Color | Black | |
Terminal Screw Material | Steel | |
Terminal Screw Finish | Zinc, Clear Chromate | |
Mounting Type | Chassis, Panel | |
Operating Temperature | 150°C | |
Material - Insulation | Phenol Formaldehyde (Phenolic) | |
Material Flammability Rating | UL94 V-0 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 38211-0120 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
38211-0120 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 38211-0120 is new and unused, you can buy 38211-0120 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 38211-0120.
