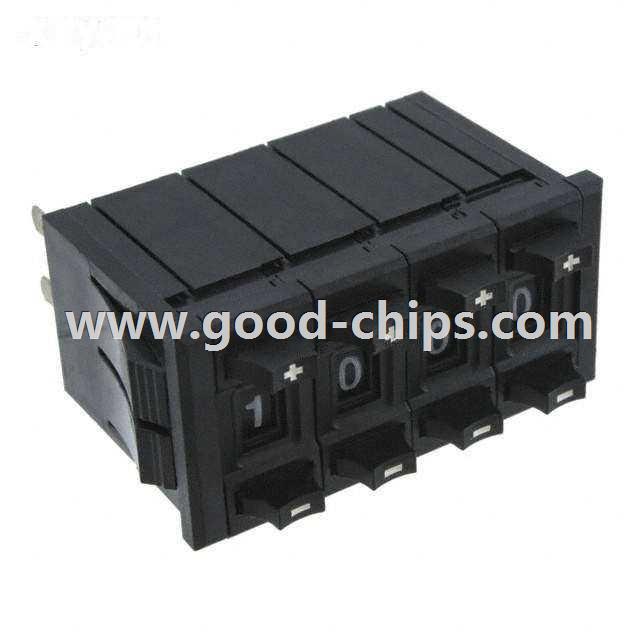

| Manufacturer Part Number: | 3684S-1-103L |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Value Display Potentiometers |
| Available Quantity: | 9044 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10k 2W 4 Character Panel Mount Value Display Potentiometer |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3684S-1-103L Datasheet |
| Internal Part Number | 898-3684S-1-103L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 3864S-1.stp | |
| Online Catalog | 3680 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Value Display Potentiometers | |
| Manufacturer | Bourns Inc. | |
| Series | 3680 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 10k | |
| Power (Watts) | 2W | |
| Tolerance | ±3% | |
| Adjustment Type | Push Button | |
| Number of Characters | 4 | |
| Mounting Type | Panel Mount | |
| Size / Dimension | Square - 1.870" L x 0.930" W x 1.050" H (47.50mm x 23.62mm x 26.67mm) | |
| Termination Style | Solder Lug | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3684S-1-103L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3684S-1-103L is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3684S-1-103L is new and unused, you can buy 3684S-1-103L Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3684S-1-103L.
