| Manufacturer Part Number: | 364A595 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9235 Pieces |
| Unit Price: | Quote by Email |

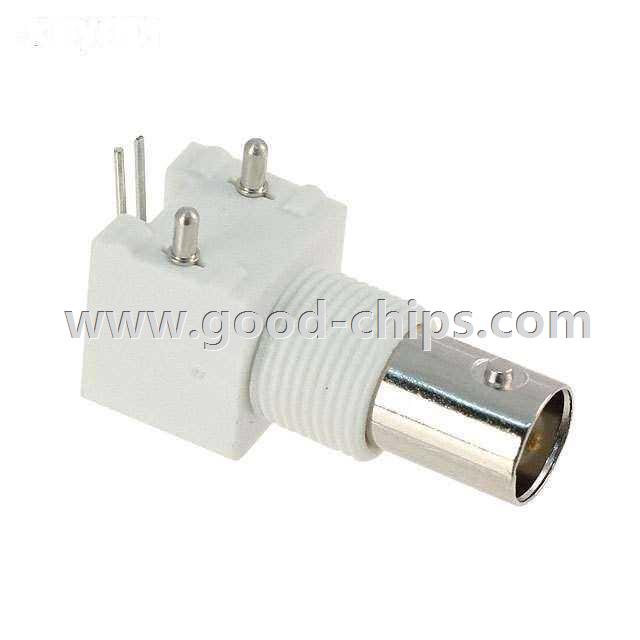

| Description: | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead; Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 364A595 Datasheet |
| Internal Part Number | 898-364A595 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | BNC Connectors | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Winchester Electronics | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | BNC | |
| Connector Type | Jack, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Bayonet Lock | |
| Frequency - Max | 4GHz | |
| Features | Board Guide, Isolated | |
| Housing Color | Silver, White | |
| Ingress Protection | Weatherproof | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | Phosphor Bronze | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polypropylene (PP) | |
| Voltage Rating | 500V | |
| Operating Temperature | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 364A595 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
364A595 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 364A595 is new and unused, you can buy 364A595 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 364A595.
