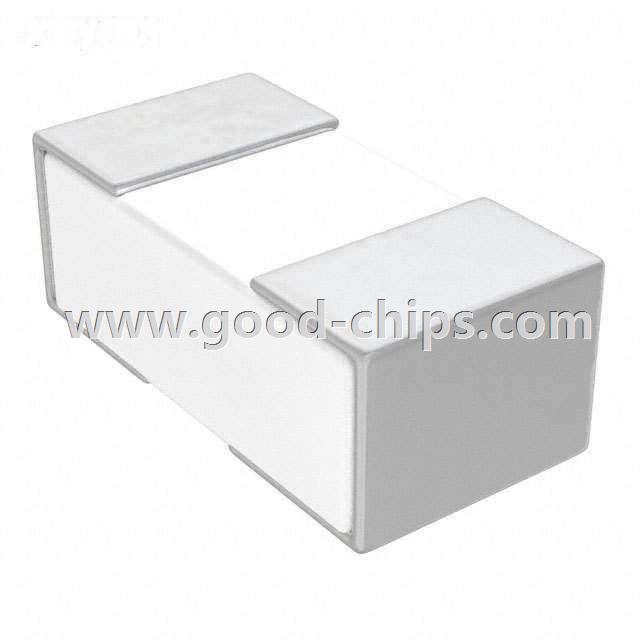

.jpg)
| Manufacturer Part Number: | 36401E3N3A |
|---|---|
| Manufacturer: | TE Connectivity AMP Connectors |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3nH Unshielded Thin Film Inductor 380mA 450 mOhm Max 0402 (1005 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 36401E3N3A Datasheet |
| Internal Part Number | 898-36401E3N3A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 1-1624108-0 Statement of Compliance RoHS 2 Statement | |
| 3D Model | 1-1624108-0.pdf | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TE Connectivity AMP Connectors | |
| Series | 3640, Sigma Inductors | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Thin Film | |
| Material - Core | - | |
| Inductance | 3.3nH | |
| Tolerance | ±0.2nH | |
| Current Rating | 380mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 450 mOhm Max | |
| Q @ Freq | 13 @ 500MHz | |
| Frequency - Self Resonant | 6GHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 500MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0402 (1005 Metric) | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| Height - Seated (Max) | 0.015" (0.37mm) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 36401E3N3A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
36401E3N3A is in stock for immediate shipping now. We are the distributor of TE Connectivity AMP Connectors all series components. The condition of 36401E3N3A is new and unused, you can buy 36401E3N3A TE Connectivity AMP Connectors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 36401E3N3A.
