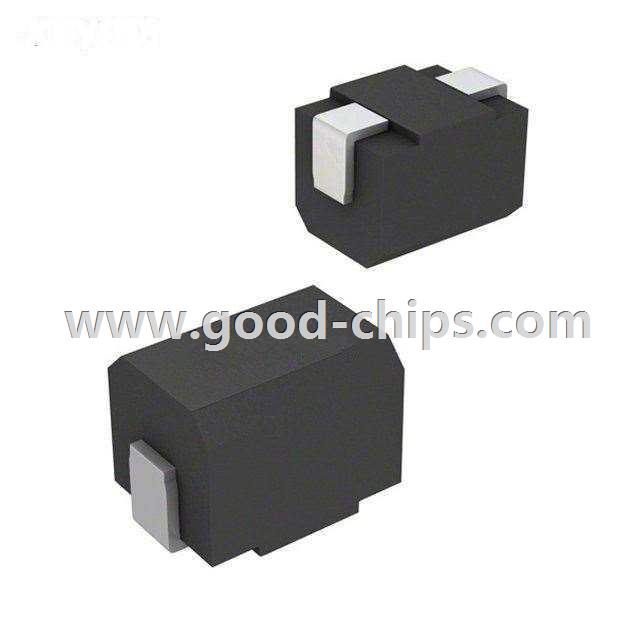

| Manufacturer Part Number: | 3613C470K |
|---|---|
| Manufacturer: | TE Connectivity AMP Connectors |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 47µH Unshielded Inductor 140mA 5 Ohm Max 1812 (4532 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3613C470K Datasheet |
| Internal Part Number | 898-3613C470K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 1-1624094-6 Statement of Compliance RoHS 2 Statement | |
| 3D Model | 1-1624094-6.pdf | |
| Online Catalog | 3613C, Sigma Inductors Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TE Connectivity AMP Connectors | |
| Series | 3613C, Sigma Inductors | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | Ferrite | |
| Inductance | 47µH | |
| Tolerance | ±10% | |
| Current Rating | 140mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 5 Ohm Max | |
| Q @ Freq | 50 @ 2.52MHz | |
| Frequency - Self Resonant | 10MHz | |
| Ratings | - | |
| Operating Temperature | -30°C ~ 100°C | |
| Frequency - Test | 2.52MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | 0.134" (3.40mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3613C470K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3613C470K is in stock for immediate shipping now. We are the distributor of TE Connectivity AMP Connectors all series components. The condition of 3613C470K is new and unused, you can buy 3613C470K TE Connectivity AMP Connectors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3613C470K.
