| Manufacturer Part Number: | 3600BP15M600E |
|---|---|
| Manufacturer: | Johanson Technology Inc. |
| Product Category: | RF Filters |
| Available Quantity: | 29010 Pieces |
| Unit Price: | Quote by Email |

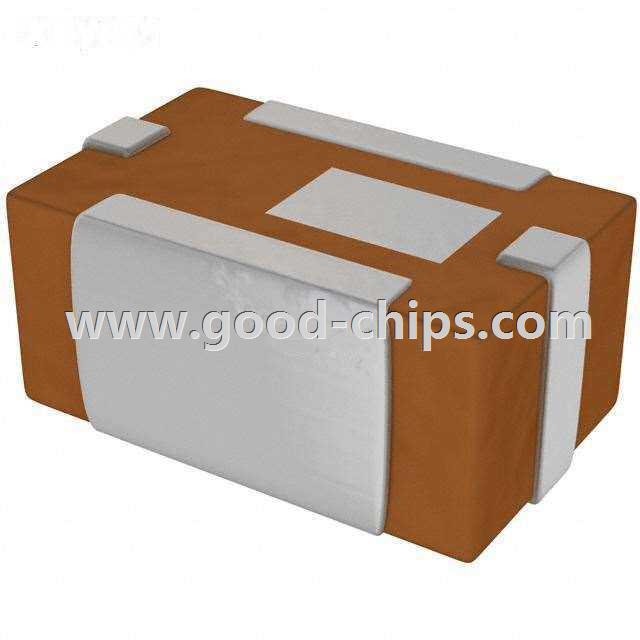

| Description: | FILTER BANDPASS WIMAX 3.6GHZ |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3600BP15M600E Datasheet |
| Internal Part Number | 898-3600BP15M600E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Benefits of using Integrated Passive Components over a Discrete Solution | |
| Featured Product | Integrated Passive Components | |
| Online Catalog | RF Ceramic Filters | |
| Category | Filters | |
| Family | RF Filters | |
| Manufacturer | Johanson Technology Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency | 3.6GHz Center | |
| Bandwidth | 600MHz | |
| Filter Type | Band Pass | |
| Ripple | - | |
| Insertion Loss | 1.8dB | |
| Package / Case | 0805 (2012 Metric), 4 PC Pad | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.041" (1.05mm) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3600BP15M600E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3600BP15M600E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 3600BP15M600E is new and unused, you can buy 3600BP15M600E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3600BP15M600E.
