Manufacturer Part Number: | 3590P-1-103L |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Rotary Potentiometers, Rheostats |
Available Quantity: | 9076 Pieces |
Unit Price: | Quote by Email |

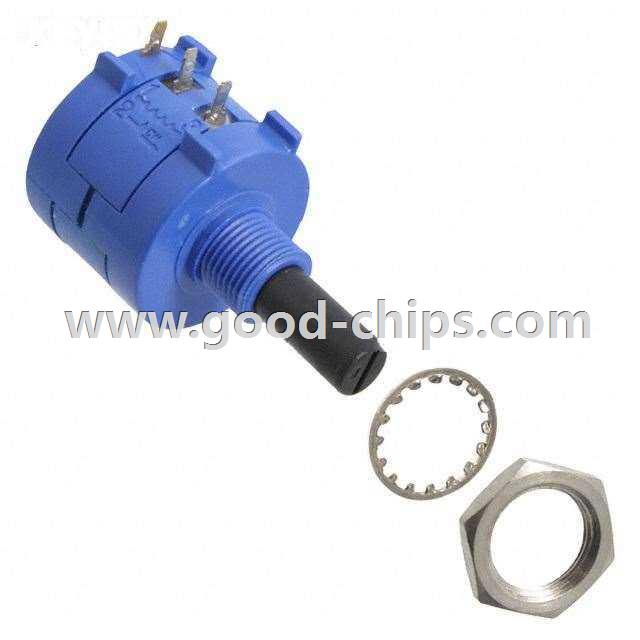

Description: | 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 10 Turn Wirewound 2W PC Pins |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3590P-1-103L Datasheet |
Internal Part Number | 898-3590P-1-103L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 3590P-1.stp | |
PCN Design/Specification | PBT Resin Jun/2011 Multiple Models Varnish Process 18/Jan/2012 | |
PCN Packaging | Multiple Devices Jul/2015 | |
Online Catalog | 3590 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Rotary Potentiometers, Rheostats | |
Manufacturer | Bourns Inc. | |
Series | 3590 | |
Packaging | Bulk | |
Part Status | Active | |
Taper | Linear | |
Resistance (Ohms) | 10k | |
Tolerance | ±5% | |
Number of Gangs | 1 | |
Built in Switch | None | |
Power (Watts) | 2W | |
Temperature Coefficient | ±50ppm/°C | |
Number of Turns | 10 | |
Rotation | 3600° | |
Adjustment Type | Side Adjustment | |
Resistive Material | Wirewound | |
Termination Style | PC Pins | |
Actuator Type | Slotted | |
Actuator Length | 0.812" (20.63mm) | |
Actuator Diameter | 0.248" (6.30mm) | |
Bushing Thread | 3/8-32 | |
Mounting Type | Panel Mount | |
Standard Package | 5 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3590P-1-103L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3590P-1-103L is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3590P-1-103L is new and unused, you can buy 3590P-1-103L Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3590P-1-103L.
