Manufacturer Part Number: | 3560 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Fuseholders |
Available Quantity: | 9521 Pieces |
Unit Price: | Quote by Email |

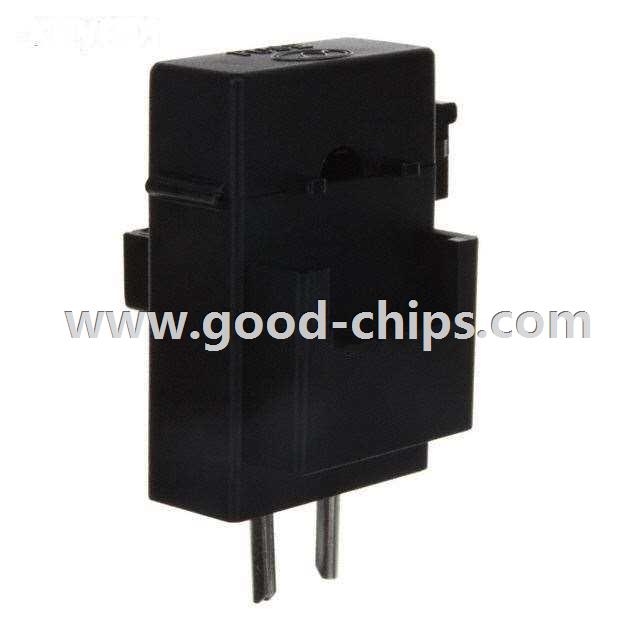

Description: | FUSE HOLDER BLADE 20A PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3560 Datasheet |
Internal Part Number | 898-3560 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance Statement | |
Online Catalog | Modular PC Automotive Blade Fuse Holder | |
Category | Circuit Protection | |
Family | Fuseholders | |
Manufacturer | Keystone Electronics | |
Series | - | |
Part Status | Active | |
Fuseholder Type | Holder | |
Fuse Type | Blade | |
For Use With/Related Products | ATC, ATO | |
Fuse Size | 0.75" L x 0.2" W x 0.48" H (19.1mm x 5.1mm x 12.2mm) | |
Number of Circuits | 1 | |
Voltage | - | |
Current Rating | 20A | |
Mounting Type | PCB | |
Orientation | Vertical | |
Termination Style | PC Pin | |
Contact Material | Brass | |
Contact Finish | Tin | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3560 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3560 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 3560 is new and unused, you can buy 3560 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3560.
