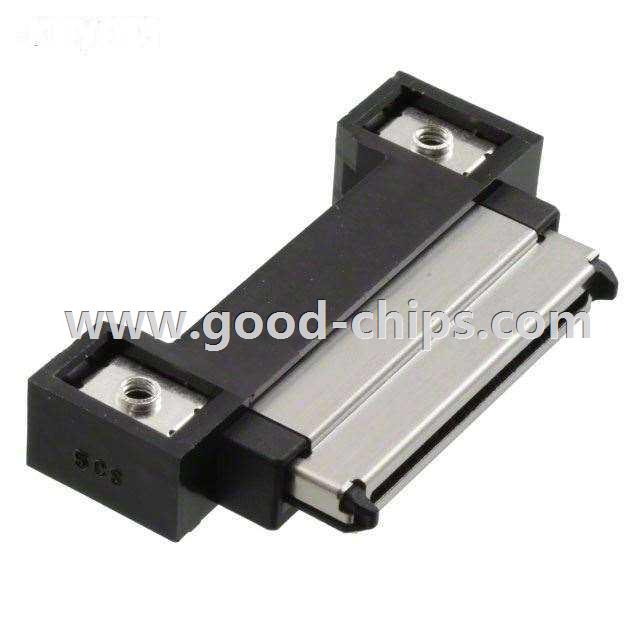

Manufacturer Part Number: | 3560-24P-PG(57) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Pluggable Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN PLUG R/A 24POS PUSHPULL SMT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3560-24P-PG(57) Datasheet |
Internal Part Number | 898-3560-24P-PG(57) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 3500 Series - Hirose Electric Co Ltd | |
Category | Connectors, Interconnects | |
Family | Pluggable Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | 3500 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Style | Plug | |
Connector Type | Multi-Purpose | |
Number of Positions | 24 | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3560-24P-PG(57) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3560-24P-PG(57) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of 3560-24P-PG(57) is new and unused, you can buy 3560-24P-PG(57) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3560-24P-PG(57).
