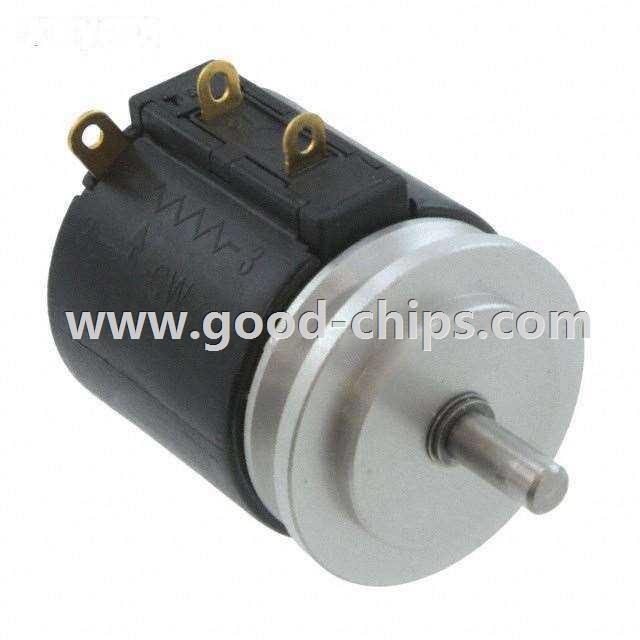

| Manufacturer Part Number: | 3549S-1AD-103A |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Rotary Potentiometers, Rheostats |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 10 Turn Wirewound 2W Solder Lug |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3549S-1AD-103A Datasheet |
| Internal Part Number | 898-3549S-1AD-103A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Models 3549,3548,3547 01/Jan/2013 | |
| PCN Packaging | Multiple Devices Jul/2015 | |
| Category | Potentiometers, Variable Resistors | |
| Family | Rotary Potentiometers, Rheostats | |
| Manufacturer | Bourns Inc. | |
| Series | 3549 | |
| Packaging | Tray | |
| Part Status | Active | |
| Taper | Linear | |
| Resistance (Ohms) | 10k | |
| Tolerance | ±3% | |
| Number of Gangs | 1 | |
| Built in Switch | None | |
| Power (Watts) | 2W | |
| Temperature Coefficient | ±50ppm/°C | |
| Number of Turns | 10 | |
| Rotation | 3600° | |
| Adjustment Type | - | |
| Resistive Material | Wirewound | |
| Termination Style | Solder Lug | |
| Actuator Type | Slotted | |
| Actuator Length | 0.811" (20.60mm) | |
| Actuator Diameter | 0.236" (6.00mm) | |
| Bushing Thread | M9 x 0.75 | |
| Mounting Type | Panel Mount | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3549S-1AD-103A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3549S-1AD-103A is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3549S-1AD-103A is new and unused, you can buy 3549S-1AD-103A Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3549S-1AD-103A.
