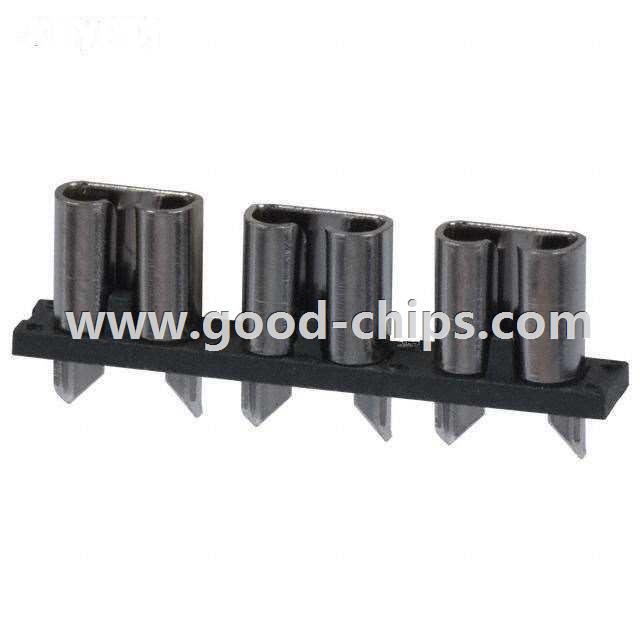

Manufacturer Part Number: | 3522-3 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Fuseholders |
Available Quantity: | 10028 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE CLIP BLADE 500V 30A PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3522-3 Datasheet |
Internal Part Number | 898-3522-3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance Statement | |
Online Catalog | Automotive Blade Fuse Holders | |
Category | Circuit Protection | |
Family | Fuseholders | |
Manufacturer | Keystone Electronics | |
Series | - | |
Part Status | Active | |
Fuseholder Type | Clip | |
Fuse Type | Blade | |
For Use With/Related Products | ATC, ATO 257 | |
Fuse Size | 1.15" L x 0.35" W x 1.35" H (29.21mm x 8.85mm x 34.29mm) | |
Number of Circuits | 2 | |
Voltage | 500V | |
Current Rating | 30A | |
Mounting Type | PCB | |
Orientation | Vertical | |
Termination Style | PC Pin | |
Contact Material | Brass | |
Contact Finish | Tin Nickel | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3522-3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3522-3 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 3522-3 is new and unused, you can buy 3522-3 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3522-3.
