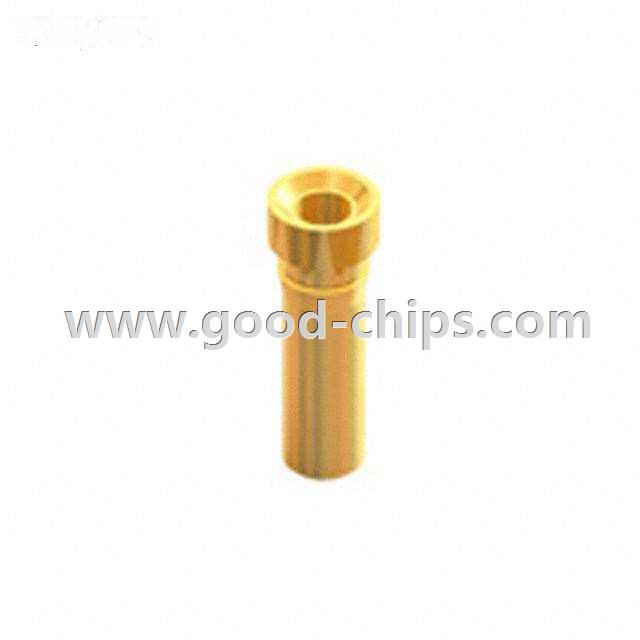

| Manufacturer Part Number: | 3509 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Press-Fit |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3509 Datasheet |
| Internal Part Number | 898-3509 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Tail Type | No Tail | |
| Termination | Press-Fit | |
| Length - Overall | 0.203" (5.16mm) | |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) | |
| Mounting Hole Diameter | 0.057" (1.45mm) | |
| Pin Hole Diameter | - | |
| Flange Diameter | 0.072" (1.83mm) | |
| Tail Diameter | - | |
| Socket Depth | 0.160" (4.06mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Features | - | |
| Operating Temperature | - | |
| Board Thickness | - | |
| Insertion Force | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3509 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3509 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 3509 is new and unused, you can buy 3509 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3509.
