Manufacturer Part Number: | 3501-0000 |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 26 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3501-0000 Datasheet |
Internal Part Number | 898-3501-0000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | 3000 Series 07/Jan/2011 | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | 3000 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 26 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.200" (5.08mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Discrete | |
Wire Gauge | 26-28 AWG | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3501-0000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

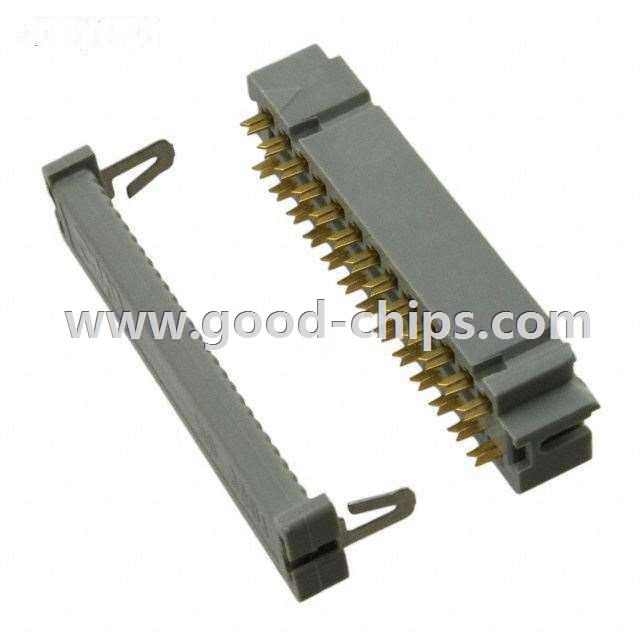

Picture / Image / Photo | Send via email |
3501-0000 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 3501-0000 is new and unused, you can buy 3501-0000 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3501-0000.
