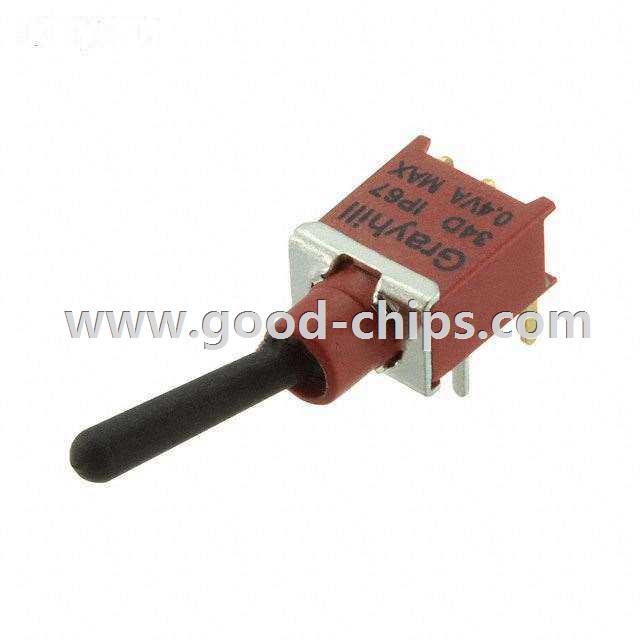

| Manufacturer Part Number: | 34DWMSP15B4M6RT |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Toggle Switches |
| Available Quantity: | 9157 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 34DWMSP15B4M6RT Datasheet |
| Internal Part Number | 898-34DWMSP15B4M6RT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Compliance Status by Product Type | |
| Online Catalog | 34D Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 34D | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Standard Round | |
| Actuator Length | 10.70mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | Unthreaded | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 30,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 34DWMSP15B4M6RT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
34DWMSP15B4M6RT is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 34DWMSP15B4M6RT is new and unused, you can buy 34DWMSP15B4M6RT Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 34DWMSP15B4M6RT.
