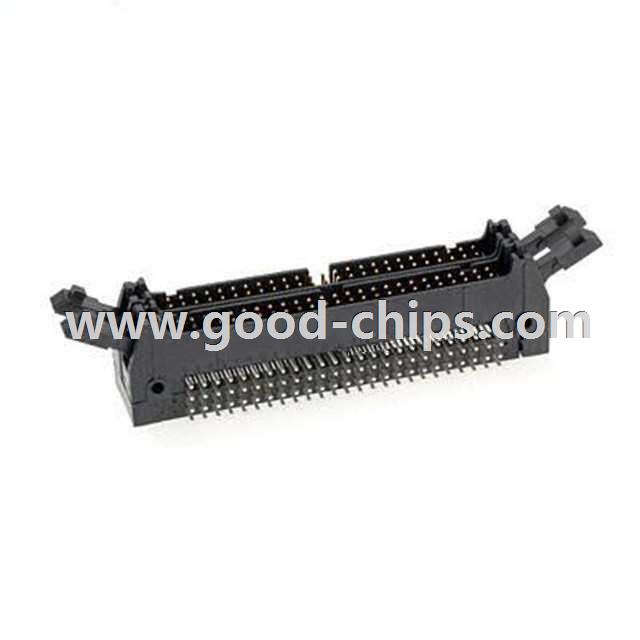

Manufacturer Part Number: | 3429-L202 |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 26, 26 Positions Header, Shrouded, Stackable (2) Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3429-L202 Datasheet |
Internal Part Number | 898-3429-L202 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | 3M | |
Series | 3000 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded, Stackable (2) | |
Number of Positions | 26, 26 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Contact Mating Length | 0.240" (6.10mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | Latch Lock/Eject Hooks, Short | |
Features | Mounting Flange | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3429-L202 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3429-L202 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 3429-L202 is new and unused, you can buy 3429-L202 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3429-L202.
