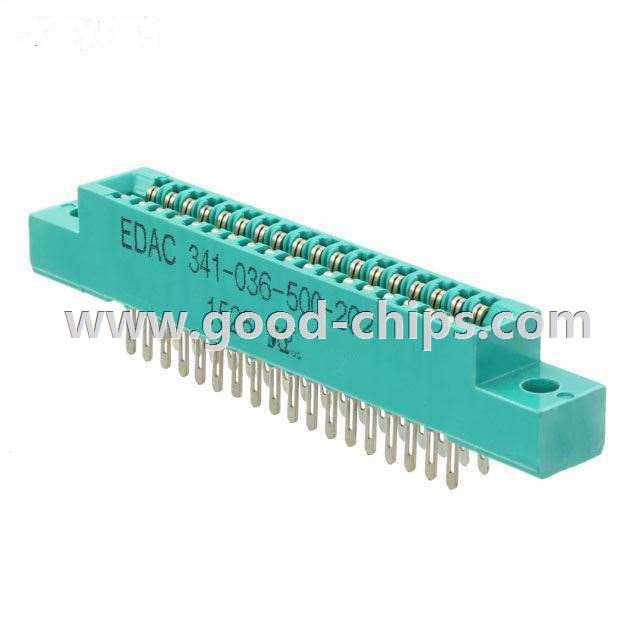

Manufacturer Part Number: | 341-036-500-202 |
---|---|
Manufacturer: | EDAC Inc. |
Product Category: | Card Edge Connectors - Edgeboard Connectors |
Available Quantity: | 9039 Pieces |
Unit Price: | Quote by Email |
Description: | CARDEDGE 36POS DL .100 GREEN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 341-036-500-202 Datasheet |
Internal Part Number | 898-341-036-500-202 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 341 and 391 Series | |
Category | Connectors, Interconnects | |
Family | Card Edge Connectors - Edgeboard Connectors | |
Manufacturer | EDAC Inc. | |
Series | 341 | |
Packaging | Bulk | |
Part Status | Active | |
Card Type | Non Specified - Dual Edge | |
Gender | Female | |
Number of Positions/Bay/Row | 18 | |
Number of Positions | 36 | |
Card Thickness | 0.062" (1.57mm) | |
Number of Rows | 2 | |
Pitch | 0.100" (2.54mm) | |
Features | - | |
Mounting Type | Panel Mount | |
Termination | Solder Eyelet(s) | |
Contact Material | Copper, Nickel, Tin Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Contact Type | - | |
Color | Green | |
Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | |
Operating Temperature | -65°C ~ 125°C | |
Material - Insulation | Polyester Thermoplastic | |
Read Out | Dual | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 341-036-500-202 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
341-036-500-202 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 341-036-500-202 is new and unused, you can buy 341-036-500-202 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 341-036-500-202.
