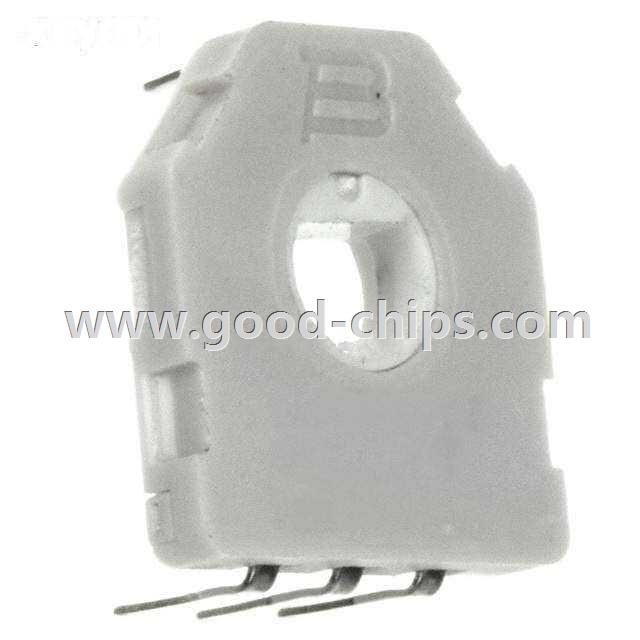

| Manufacturer Part Number: | 3382H-1-503 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Sensor Rotary Position Hole for Shaft PC Pin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3382H-1-503 Datasheet |
| Internal Part Number | 898-3382H-1-503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Rotary Position Sensor - Model 3382 | |
| Video File | Bourns Non-contacting Programmable Position Sensors - Another Geek Moment Product Preview | |
| RoHS Information | 3382 Material Declaration | |
| 3D Model | 3382H-1.stp | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Part Status | Active | |
| For Measuring | Rotary Position | |
| Technology | Resistive | |
| Rotation Angle - Electrical, Mechanical | 0° ~ 330°, Continuous | |
| Linear Range | - | |
| Output | Resistive | |
| Output Signal | Clockwise Increase | |
| Actuator Type | Hole for Shaft | |
| Linearity | ±2% | |
| Resistance (Ohms) | 50k | |
| Resistance Tolerance | ±30% | |
| Voltage - Supply | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3382H-1-503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3382H-1-503 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3382H-1-503 is new and unused, you can buy 3382H-1-503 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3382H-1-503.
