| Manufacturer Part Number: | 3317505 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) - Adapters |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

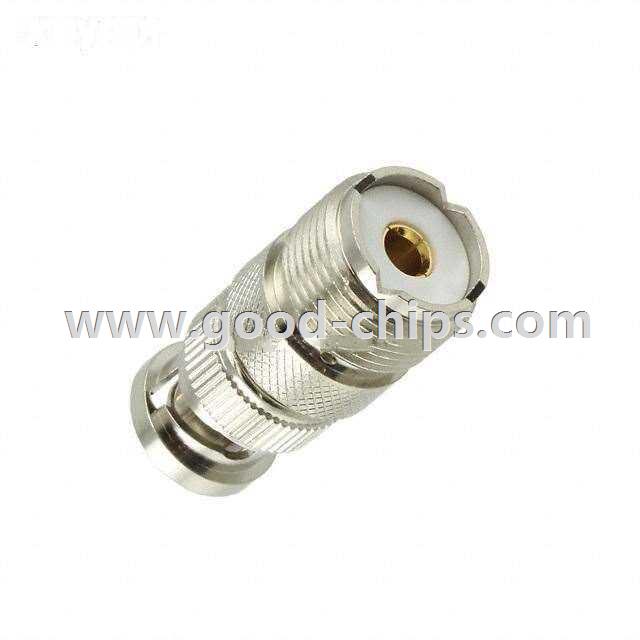

| Description: | Adapter Coaxial Connector BNC Plug, Male Pin To UHF Jack, Female Socket |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3317505 Datasheet |
| Internal Part Number | 898-3317505 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Coaxial, RF Adapters | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) - Adapters | |
| Manufacturer | Winchester Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Adapter Type | Plug to Jack | |
| Adapter Series | BNC to UHF | |
| Center Gender | Female to Male | |
| Convert From (Adapter End) | BNC Plug, Male Pin | |
| Convert To (Adapter End) | UHF Jack, Female Socket | |
| Conversion Type | Between Series | |
| Impedance | - | |
| Style | Straight | |
| Mounting Type | Free Hanging (In-Line) | |
| Frequency - Max | - | |
| Ingress Protection | - | |
| Features | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Dielectric Material | - | |
| Center Contact Material | - | |
| Center Contact Plating | - | |
| Mating Cycles | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3317505 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3317505 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 3317505 is new and unused, you can buy 3317505 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3317505.
