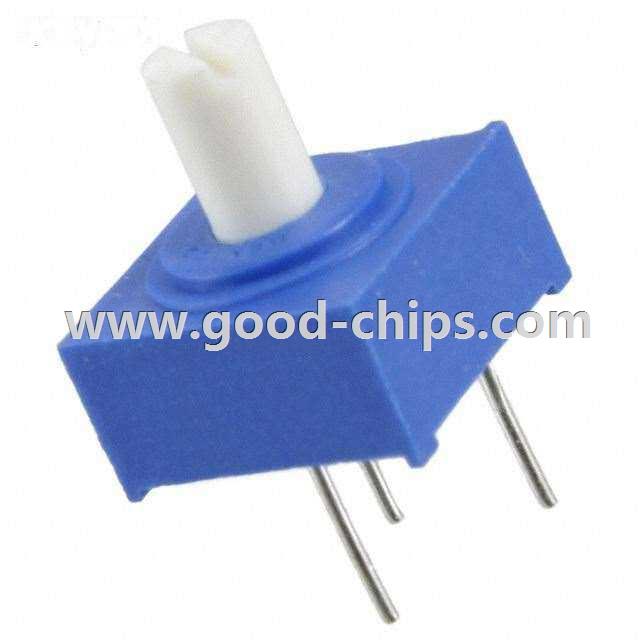

| Manufacturer Part Number: | 3315Y-025-006L |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER 9MM SQ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3315Y-025-006L Datasheet |
| Internal Part Number | 898-3315Y-025-006L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 3315Y-025.stp | |
| PCN Design/Specification | 3315E Series Epoxy Process Sep/2014 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Bourns Inc. | |
| Series | 3315 | |
| Part Status | Active | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 6 | |
| Voltage - Supply | - | |
| Actuator Type | 1/8" Dia Slotted End | |
| Detent | No | |
| Built in Switch | No | |
| Mounting Type | PCB, Through Hole | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 100K | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3315Y-025-006L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3315Y-025-006L is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3315Y-025-006L is new and unused, you can buy 3315Y-025-006L Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3315Y-025-006L.
