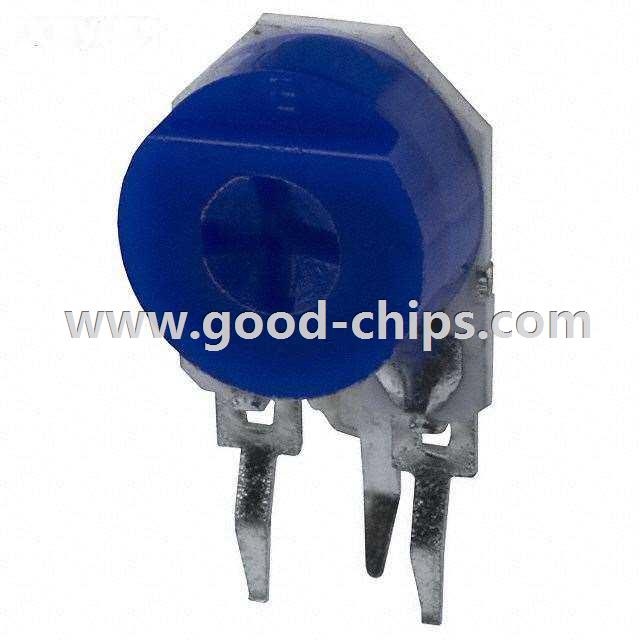

Manufacturer Part Number: | 3309W-1-204 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Trimmer Potentiometers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 200k Ohm 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Side Adjustment |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3309W-1-204 Datasheet |
Internal Part Number | 898-3309W-1-204 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 3309W.stp 3309W.igs | |
Category | Potentiometers, Variable Resistors | |
Family | Trimmer Potentiometers | |
Manufacturer | Bourns Inc. | |
Series | Trimpot® 3309 - Open Frame | |
Packaging | Bulk | |
Part Status | Active | |
Resistance (Ohms) | 200k | |
Power (Watts) | 0.5W, 1/2W | |
Tolerance | ±25% | |
Temperature Coefficient | ±250ppm/°C | |
Number of Turns | 1 | |
Adjustment Type | Side Adjustment | |
Resistive Material | Cermet | |
Mounting Type | Through Hole | |
Termination Style | PC Pins | |
Size / Dimension | Rectangular - 0.354" x 0.433" Face x 0.492" H (9.00mm x 11.00mm x 12.50mm) | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3309W-1-204 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3309W-1-204 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3309W-1-204 is new and unused, you can buy 3309W-1-204 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3309W-1-204.
