| Manufacturer Part Number: | 3309505 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) - Adapters |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

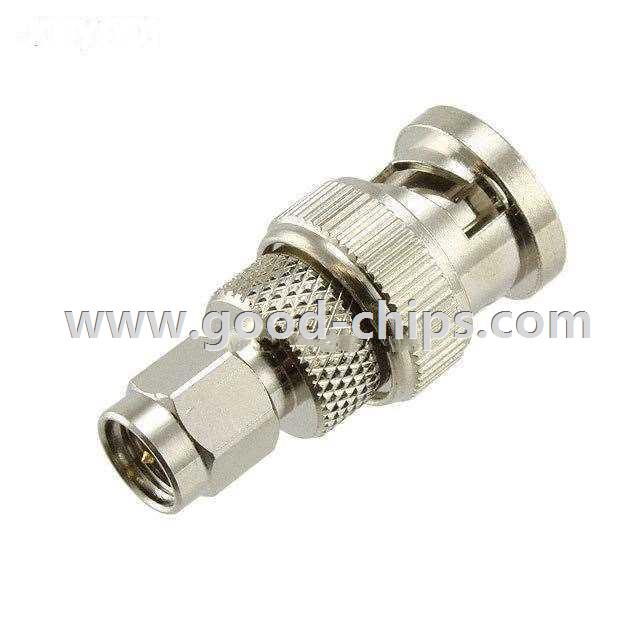

| Description: | Adapter Coaxial Connector BNC Plug, Male Pin To SMA Plug, Male Pin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3309505 Datasheet |
| Internal Part Number | 898-3309505 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Coaxial, RF Adapters | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) - Adapters | |
| Manufacturer | Winchester Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Adapter Type | Plug to Plug | |
| Adapter Series | BNC to SMA | |
| Center Gender | Male to Male | |
| Convert From (Adapter End) | BNC Plug, Male Pin | |
| Convert To (Adapter End) | SMA Plug, Male Pin | |
| Conversion Type | Between Series | |
| Impedance | - | |
| Style | Straight | |
| Mounting Type | Free Hanging (In-Line) | |
| Frequency - Max | - | |
| Ingress Protection | - | |
| Features | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Dielectric Material | - | |
| Center Contact Material | - | |
| Center Contact Plating | - | |
| Mating Cycles | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3309505 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3309505 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 3309505 is new and unused, you can buy 3309505 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3309505.
